This product is the replacement Magnetic heatbed MK52 24V. It is ONLY compatible with the MK3/S/+. It is NOT compatible with the MK2.5/S.

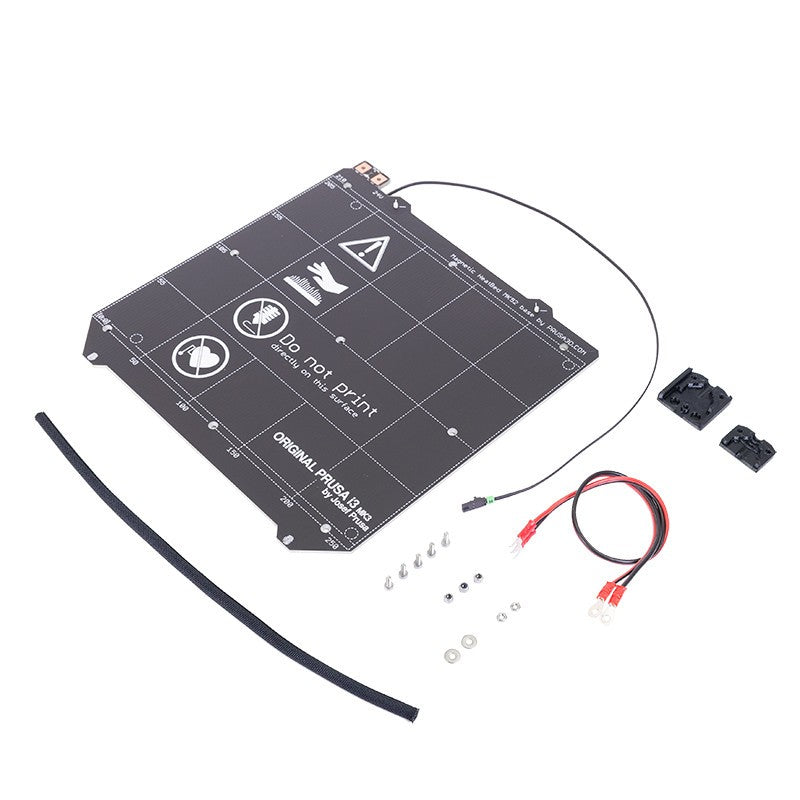

This product includes:
- Magnetic heatbed MK52 24V (1 pcs)
- Heatbed-Einsy power cable (screw-attached) (1 pcs)

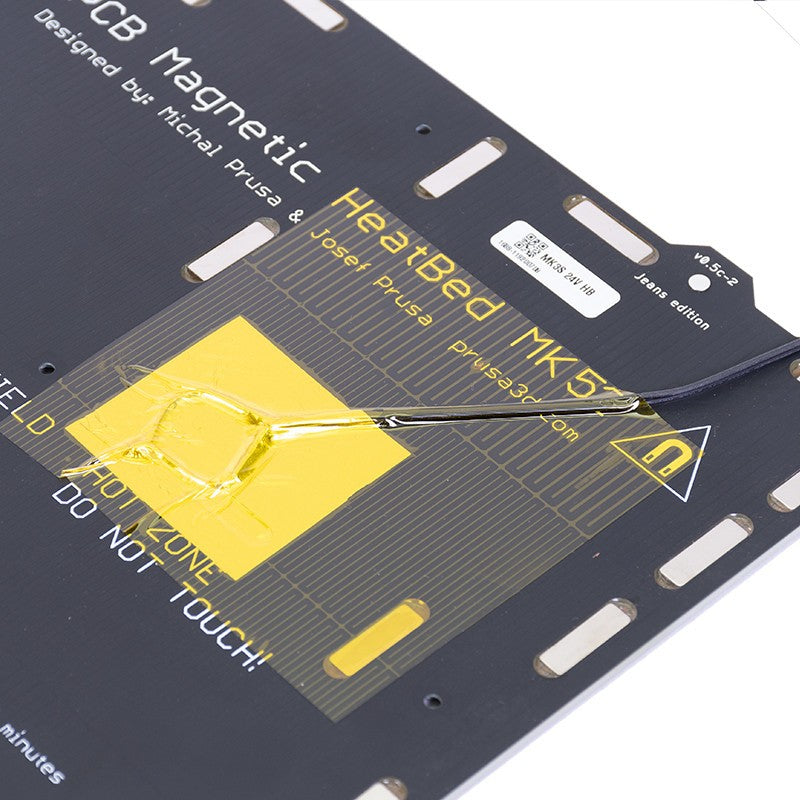

- Heatbed thermistor E3D (already mounted and fixed in place by the aluminum and kapton tapes) (1 pcs)
- Textile sleeve (Length: 300 mm, Width: 5 mm) (1 pcs)
- Heatbed cable cover (1 pcs)
- Heatbed cable cover clip (1 pcs)
- Nuts: M3nN (3 pcs), M3n (2 pcs)
- Screws: M3x10 (5 pcs)
- Washers: M3/3,2/9/0,8 (2 pcs)
Specifications:
- Height: 264.4 mm
- Width: 254 mm
- Thickness: ~3.175 mm
- Maximum working temperature: 120°C
- Maximum recommended temperature: 110°C
- Voltage: 24V
- Current: 6.25A
- Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090
To replace the part/s, please consult our Assembly Manuals. Make sure to follow the manual for your printer model.
