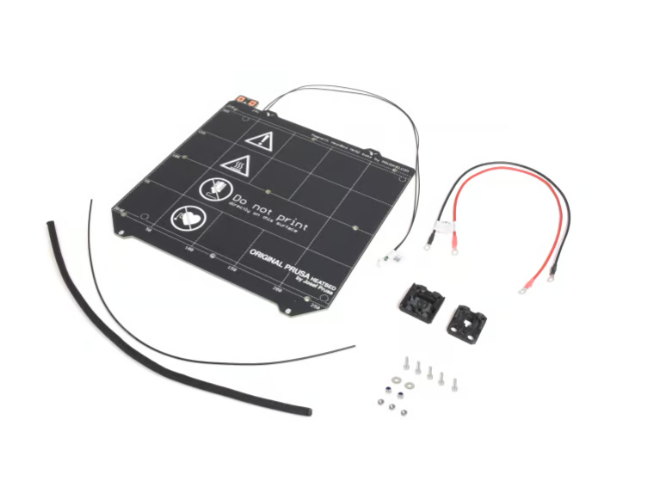

Original Prusa Heatbed MK52 24V - xBuddy replacement set

This product includes:

• Heatbed MK52 24V (1 pc)
• Heatbed wiring - black (1 pc)
• Heatbed wiring - red (1 pc)
• heatbed-cable-cover-top (1 pc)
• heatbed-cable-cover-bottom (1 pc)
• Textile sleeve 5x350 mm (1 pc)
• Nylon 2x380 mm (1 pc)
• M3x10 screw (5 pcs)
• M3n nut (3 pcs)
• M3nN nut (2 pcs)
• M3w washer (2 pcs)

Specifications:

• Height: 264.4 mm
• Width: 254 mm
• Thickness: ~3.175 mm
• Maximum working temperature: 120°C
• Maximum recommended temperature: 110°C
• Voltage: 24V
• Current: 6.25A
• Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090

To replace the part/s, please consult our Assembly Manuals. Make sure to follow the manual for your printer model.

This Product is used only for the MK3.9/MK4/MK4s
This Product will require the Xbuddy board
