  These pneumatic fittings are designed to provide a simple and cost effective way of inserting Bowden tubing directly into your printed or plastic components.

The couplings are designed to take 4mm OD tubing and the plastic ring is designed to be inserted into a 12mm hole at least 7mm deep.

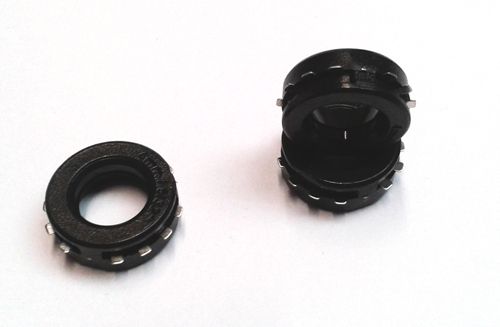

Dimentions for the outer ring:

Outer diameter: 11.8mm
Overall diameter: 12.8mm
Inner diameter: 6.3mm
Thickness: 5mm

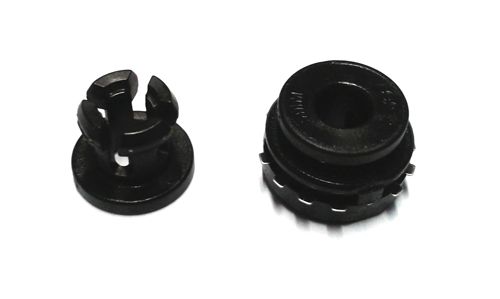

Dimentions for the insert:

Outer diameter: 10mm
Inner diameter: 4mm
Thickness of top lip: 1.5mm
Diameter of legs: 6mm
