This extruder upgrade kit will solve your feeding and grinding problems and will also give you higher resolution that will improve surface quality. It will also allow to print faster with sustained quality and no risk for grinding the filament.
It features our lightweight BMG extruder with internal 3:1 gearing ratio combined with our DualDrive precision cnc-machined hardened steel gears for maximum performance an for a long lifetime.
We have integrated the filament sensor in the mount for the CR-10S, the mount for CR-10 has no place for a filament sensor.

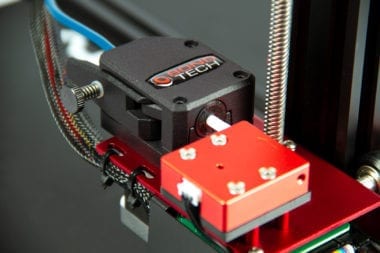

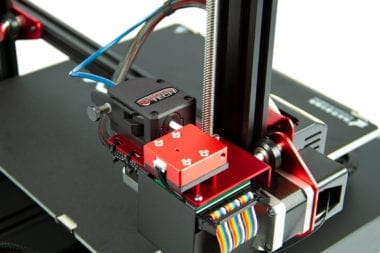

The BMG Bowden Upgrade Kit for the CR-10S Pro uses Bondtech Dual Drive System to give extra push force and resolution plus a tighter fit between gears
It features our lightweight BMG extruder with internal 3:1 gearing ratio combined with our DualDrive precision cnc-machined hardened steel gears for maximum performance an for a long lifetime.
We have integrated the filament sensor in the mount for the CR-10S, the mount for CR-10 has no place for a filament sensor.
The BMG Bowden Upgrade Kit for the CR-10S Pro uses Bondtech Dual Drive System to give extra push force and resolution plus a tighter fit between gears
and housing to avoid filament jamming.
1x BMG Extruder;
1x Sensor Spacer;
1x Thumbscrew;
1x Motor Gear and M3x3 Set Screw;
4x Countersunk M3x6 screws;
1x Bondtech Cable Clip;
1x Powered By BONDTECH Sticker.
E-steps needs to be updated to 415, please see the installation guide of how to do it. Rotation direction of the stepper motor needs to be changed (Installation guide)
This kit contains no motor, the original motor is used.
