Original Prusa MMU3 upgrade kit (for MK3S+ Only)

Original Prusa MMU3 upgrade kit (for MK3S+ Only)

Regular price $ 399.99 USD
Regular price $ 0.00 USD Sale price $ 399.99 USD
Sale Sold out
1 review
View full details
Skip to product information
1 of 4

NOTE: If ordering to go with an MK4 printer, please also select the "Original Prusa MK3S+ MMU3 upgrade kit to MK4/MK3.9" kit, the cost of the "Original Prusa MK3S+ MMU3 upgrade kit to MK4/MK3.9" will be zeroed out when ordered together.


What is Multi Material Upgrade?0

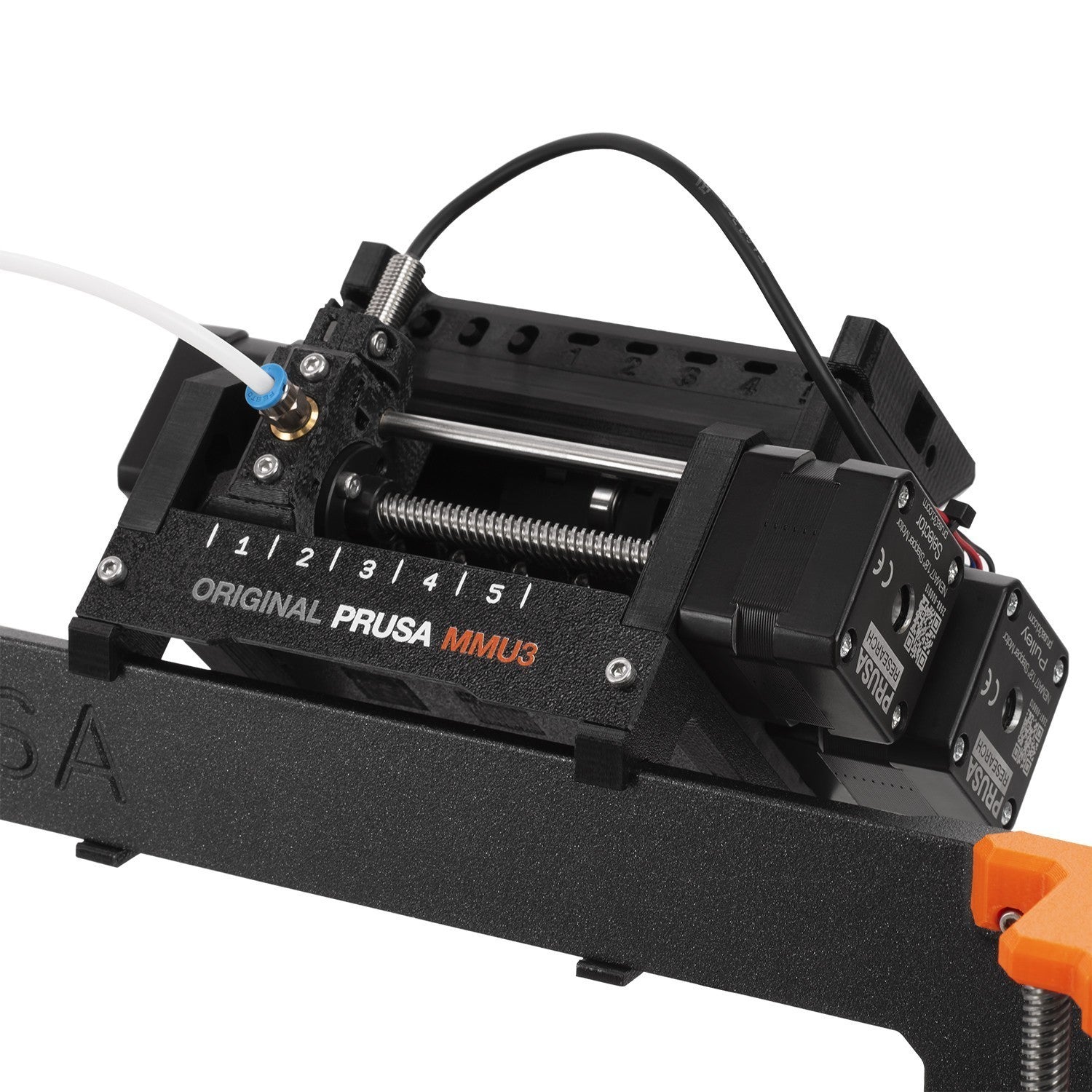

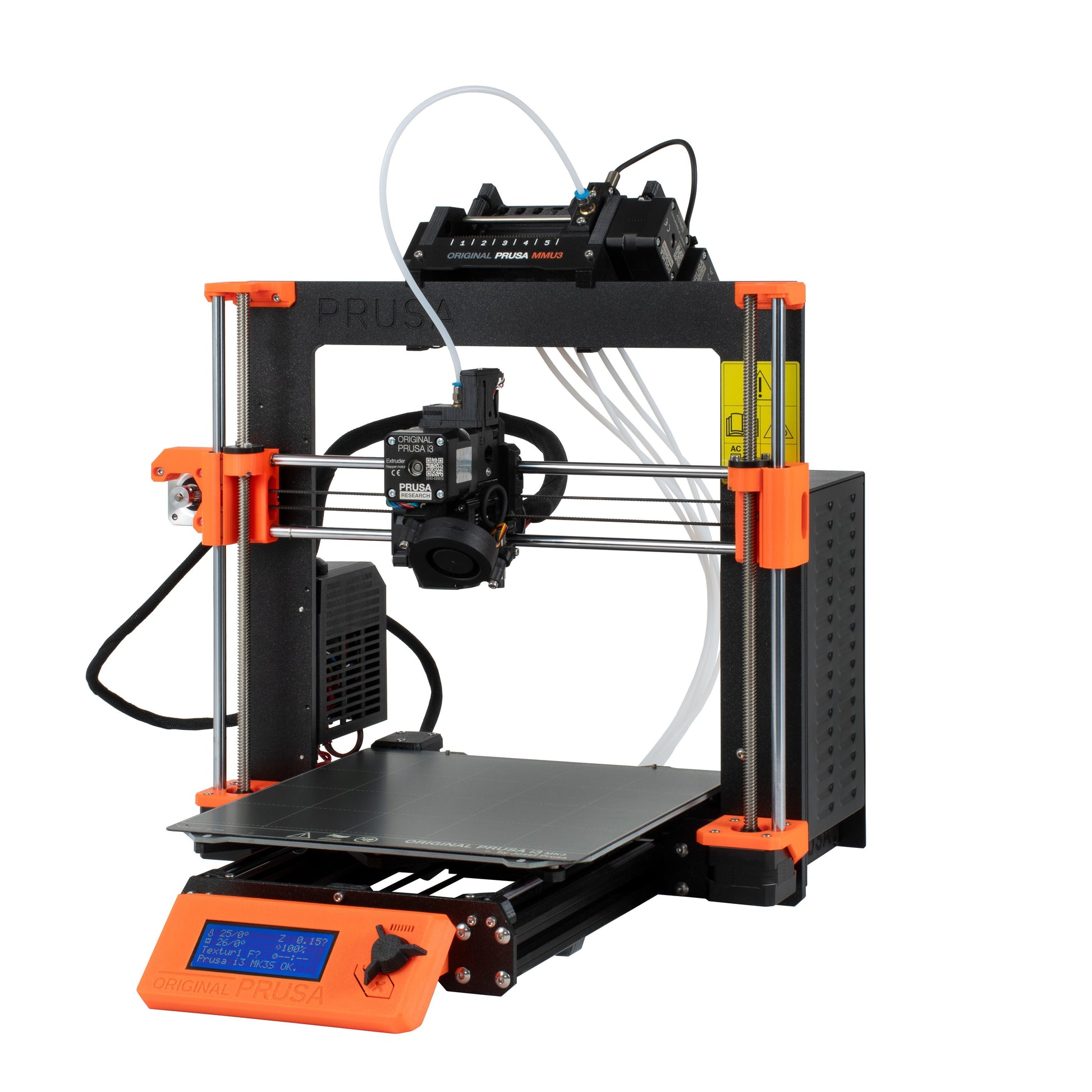

It’s exactly what it sounds like - it’s an optional add-on that allows your single-extruder printer to print with up to 5 colors (materials) at the same time. The MMU3 contains five filament insertion points. Load up to five colors of your choice, slice the object in PrusaSlicer and start the print. The system automatically selects filament using the selector, loads it into the extruder and the printer starts printing. When it’s time to change the color or material, it also happens automatically.

What's new in MMU3?

  • Completely new firmware written from scratch
  • Full two-way communication with the printer, Compatible with the MK3S+
  • LCD screen integration (status messages, real-time information, error codes)
  • All plastic parts were redesigned with a focus on easier assembly and maintenance
  • New metal parts to make the unit more robust and reliable
  • Improved electronics

Efficient multi-color printing

Every time you switch filaments, you need to purge the previous material from the nozzle to prevent cross-contamination. There are various ways to do it and the MMU3 uses an efficient “wipe tower” - it’s a compact, partially hollow block next to the printed object where the filament is purged and the pressure in the nozzle is stabilized. All filament goes into one location and you don’t need to worry about bits of plastic piling around your printer.

We’re offering multiple ways how to save filament and reduce plastic waste - PrusaSlicer gives you options for “wipe into infill” (the printed object’s infill is used as a wipe tower) or you can use “wipe into object” where another object is used as a wipe tower - it will be very colorful but if you, e.g., need a functional part or you will paint it later, it’s a great way to reduce plastic waste to a minimum.

Main Features

Ever since the release of the MMU2S, we’ve been collecting and analyzing feedback from our community. This allowed us to focus on specific areas that required our attention. The MMU3 comes with reliable operation, easier maintenance and troubleshooting.

IMPROVED RELIABILITY AND MAINTENANCE

Our main focus was to make the assembly, everyday operation and maintenance easier than before. With more reliable filament switching, improved communication between the MMU3 unit and the printer, and self-repair routines, the MMU3 can finish very complex objects with ease.

PRUSASLICER MAKES PRINTING EASY

PrusaSlicer is our internally developed slicing software. Our team constantly works on new functions that make 3D printing easier. Take advantage of multi-material painting to turn single-color objects into colorful creations, and save filament by using wipe to infill and wipe to object functions!

COMPLETELY NEW MMU3 FIRMWARE

For the MMU3, we have rewritten the firmware for the MMU3 completely from scratch, utilizing full two-way communication between the MMU3 unit and the printer. The MMU3 can diagnose and resolve various situations on its own and also displays detailed (and real-time) information on the LCD screen along with status messages and error descriptions.

DOZENS OF USEFUL LITTLE TWEAKS

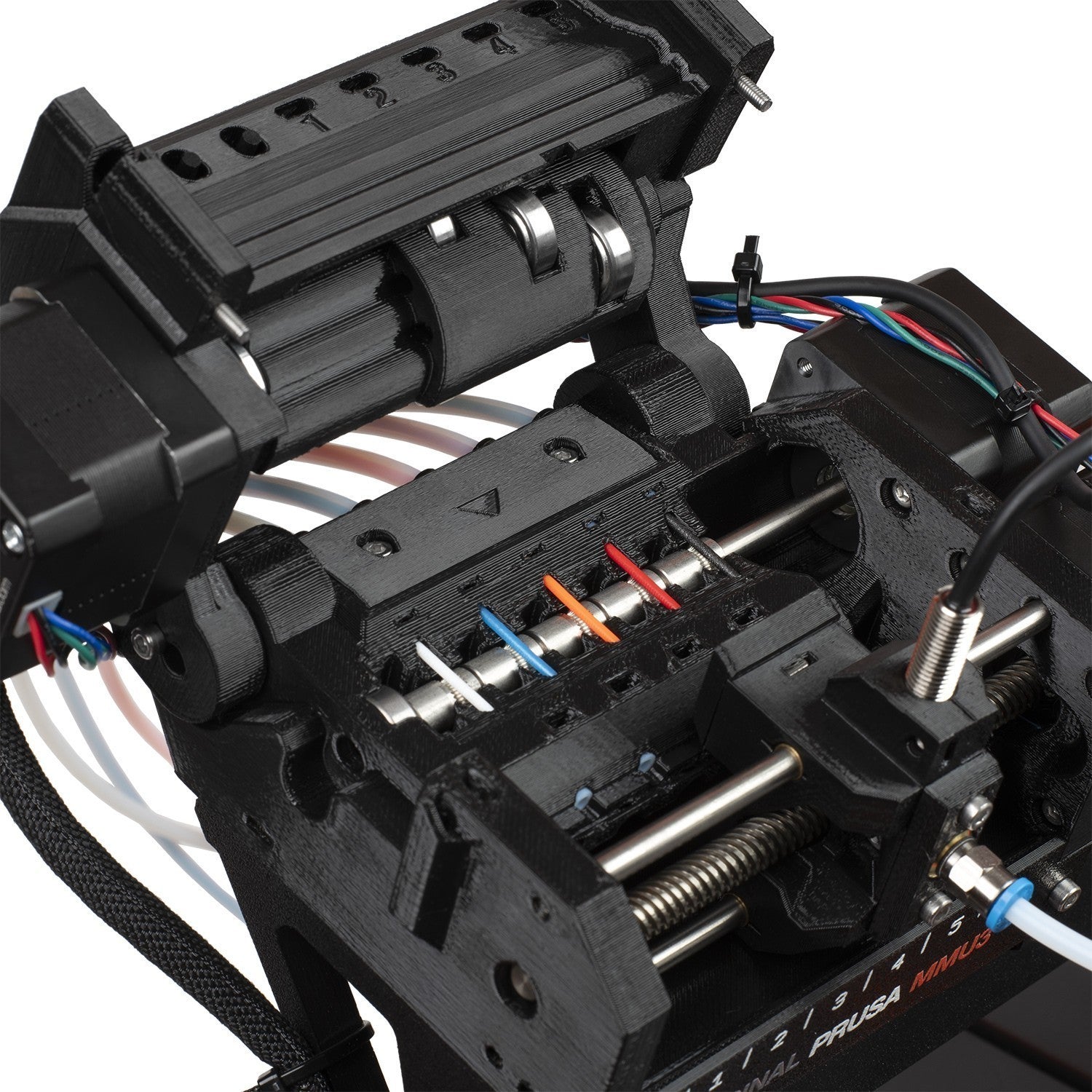

Nearly every aspect of the MMU has been retouched and redesigned. The entire filament travel path is more reliable with larger PTFE tubes for less friction. The filament buffer comes with new slide-out cassettes, filament sensor has been reworked and there are new metal parts inside the MMU3 for improved reliability.


MMU3 package includes

  • MMU electronics
  • MMU motor set
  • Printed parts or filament (2x 400g)
  • SuperFINDA
  • PTFE tubes and others
  • Fasteners
  • Spoolholders (5x)
  • Buffer plates (6x)
  • Extruder parts* (mechanical and printed)

* Contents are based on the selected printer


Tools: (optional)

  • 1.5 mm Allen key
  • 2.0 mm Allen key
  • 2.5 mm Allen key
  • Needle-nose pliers
  • Philips screwdriver PH2 (MK3S+ power terminals)
  • Wrench 8 mm ( for QSM-M5 fittings)
