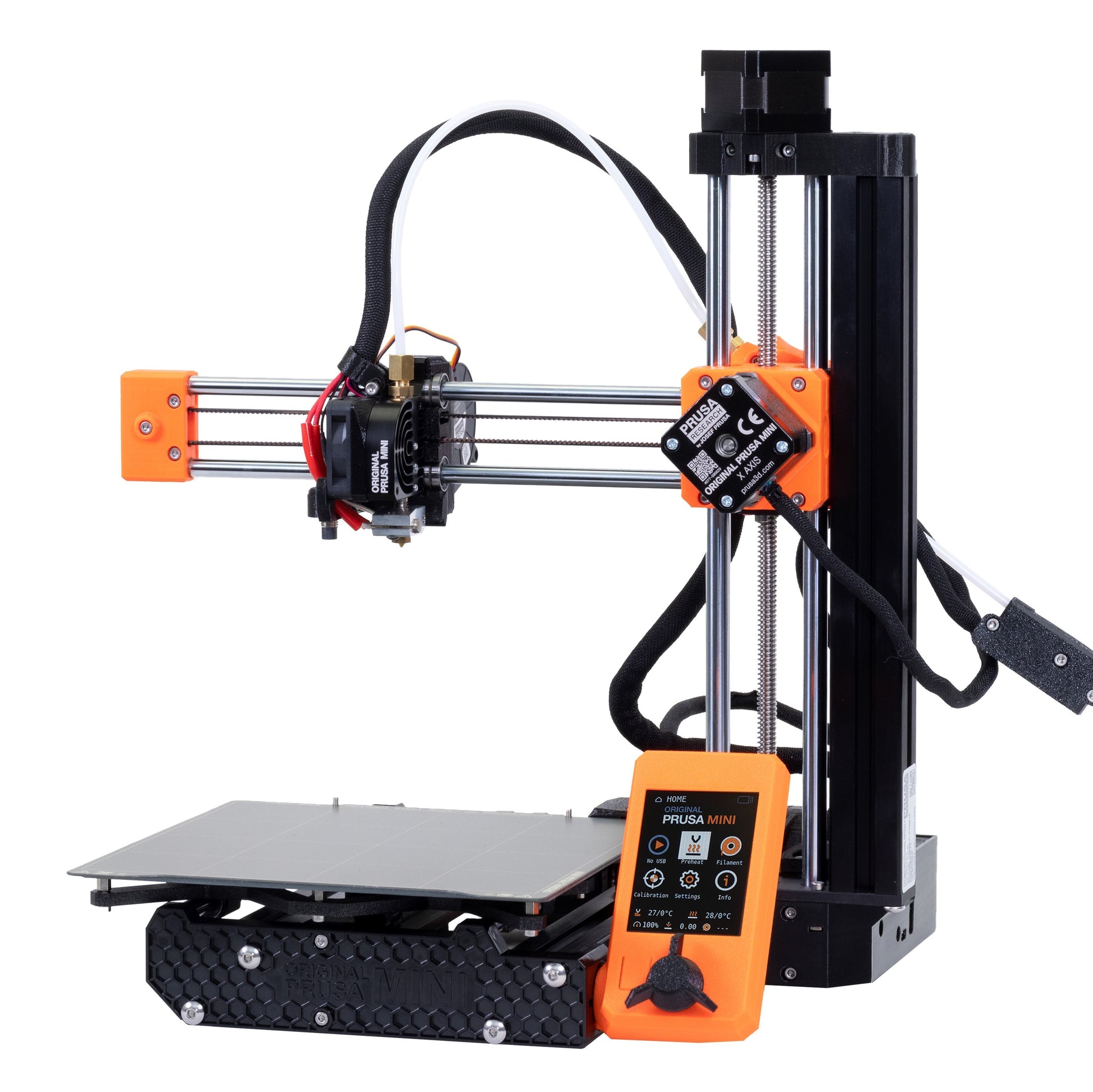

Original Prusa MINI+ Smart and compact 3D printing workhorse with all the bells and whistles you’re accustomed to when you buy an Original Prusa 3D printer. It has a print volume of 18 cm (7”) cubed, removable spring steel sheets, ethernet and optional Wi-Fi and it’s based on Prusa Research's brand new custom-made 32-bit Buddy mainboard with silent 2209 Trinamic drivers.


Main Features



Build Volume

Featuring a 7"×7"×7" (18×18×18 cm) build volume, the MINI+ is a fully-equipped 3D printer. Featuring sensorless homing, automatic Mesh Bed Calibration, replaceable nozzles, network connectivity, USB printing and a full-color LCD screen, the MINI+ is a big printer in a small body.


Color LCD Screen

Configure your 3D printer with ease and see previews of sliced models before you start printing! Thanks to the 2.8’’, 240×320 LCD screen with 65.000 colors, every option is just a few clicks away.


Flexible Print Sheets

Removing a print has never been easier! With the magnetic heatbed and removable spring steel sheets, you can remove a printed object merely by bending the steel sheet. The surface is easy to maintain and comes in two variants: smooth and textured.


SuperPinda Probe

SuperPINDA probe features a hiqh-quality sensor for a fully-automatic Mesh Bed Leveling process. Before every print, the MK3S+ probes the bed in several places and creates a virtual heightmap of the print area. This process ensures that the first layer will always be spot on!

Network Connectivity

The MINI+ comes standard with an ethernet port and optional future ESP Wi-Fi module upgrade which will enable sending files to the printer wirelessly, or download OTA firmware updates. Thanks to future updates you will be able to manage a whole print farm easily.

Safety Features

Every part we use is thoroughly tested in-house. This is why our 3D printers are highly reliable and safe to use. The MINI+ is equipped with three thermistors and comes with a high-quality power supply (Delta or Mean Well - depending on region) for safe and reliable information.

One-click Printing

Once you insert a USB drive with a sliced object, a new menu with an object preview window appears. Confirm the selection with a single click of the control wheel and watch the printer do the rest for you.

32bit Controller SMT32

More power, more options. Our brand new custom-made 32-bit “Buddy” motherboard with Trinamic 2209 drivers brings more bang for your bucks. It’s capable of nearly everything OctoPrint can do, including farm management software (future firmware update).



Technical Parameters

Build Volume 180 x 180 x 180 mm | 7 x 7 x 7 in
Layer height 0.05 – 0.25 mm
Nozzle 0.4mm default, wide range of other diameters/nozzles supported
Filament diameter 1.75 mm
Supported materials Wide range of thermoplastics, including PLA, PETG, ASA, ABS, PC (Polycarbonate), CPE, PVA/BVOH, PVB, HIPS, PP (Polypropylene), Flex, nGen, Nylon, Woodfill and other filled materials.
Max travel speed 200+ mm/s
Max nozzle temperature 280 °C / 536 °F
Max heatbed temperature 100 °C / 212 °F
Extruder Bowden system with 3:1 gearing
Print surface Removable magnetic steel sheets(*) with different surface finishes, heatbed with cold corners compensation
Printer dimensions (without spool holder & external PSU) 4,5 kg 38×33×38 cm; 15×13×15 in (X×Y×Z)
Shipping box dimensions 11 kg (volumetric weight); 48,5×26,5×40,5 cm; 19×10×16 in (X×Y×Z)



* Consumable parts, such as PEI sheets (smooth, textured, etc.) are not covered by warranty as the coatings are designed to diminish over time unless failure has occurred due to a defect in materials or workmanship. Cosmetic damage, including but not limited to scratches, dents, cracks, or other cosmetic damage is also not covered by the warranty. Only defective sheets on arrival are covered by warranty.

Full Features List (October 2021 Edition)



  • Silent Trinamic 2209 stepper drivers
  • Ethernet RJ45 port and optional future ESP Wi-Fi module upgrade
  • 3 thermistors, fan RPM sensors
  • Bowden system with 3:1 gearing
  • SuperPINDA probe - no temperature drift (more info)
  • Fast preheat: PLA 1 min / ASA 3 min
  • Sensorless homing for X and Y axes
  • 2.8″ graphic 65k color screen with G-Code preview
  • Prusament PLA sample weight: ~2x25 g


6 reasons to buy the MK3S+

1

Great User Support

Prusa Research offer 24/7 tech support via live chat and email in seven languages. Original Prusa printers come with detailed instructions and guides for easy assembly and maintenance. You can also visit the Prusa Research knowledge base, community forum, Facebook groups and official Blog, where Prusa Research publishes useful 3D printing tips and tricks, contests and more!

By purchasing from Printed Solid your support will go even further. With our USA based staff we can help you with an additional layer of support to help you get going with your 3D printing journey.

2

FANTASTIC PRICE/PERFORMANCE RATIO

The MINI+ is designed to be a true 3D printing workhorse. Thanks to its compact dimensions, you can build an entire print farm to produce mechanical parts at a rapid pace. And the affordable price makes the MINI+ a great first 3D printer for everyone.


3

FUN TO ASSEMBLE

Assembling the kit is an excellent first step to the world of 3D printing. You will understand the principles of printer construction and get a huge advantage when you need to solve possible problems and replacements later.

Don't worry, Prusa Research doesn't leave anything to chance, so the assembly instructions are pictured to the smallest detail.

See the assembly manual for yourself!


4

OPEN-SOURCE DESIGN AND GREAT COMMUNITY

All parts of Prusa Research's printers are open-source. The community around the printers are huge and the feedback is overwhelmingly positive - just check the Facebook groups or YouTube videos! There‘s so much to do with your 3D printer - buying it is just the beginning!



5

QUALITY GUARANTEED BY JOSEF PRUSA & PRUSA RESEARCH

Prusa Research is a 3D printing manufacturer located in Prague, Czech Republic. The company was founded by Josef Prusa, one of the core members of the open-source RepRap community, in 2012. Prusa Research develops and produces 3D printers exclusively in its Prague's HQ. Since 2012, more than 150.000 Original Prusa 3D printers has been sold worldwide, receiving praise from both the media and 3D printing enthusiasts. The company also develops its own open-source slicing software PrusaSlicer and produces high-quality in-house-made filament called Prusament. Prusa Research's products are covered by international warranty. The company offers 60-day hasslefree returns (conditions apply)



6

READY TO PRINT SETTINGS

Original Prusa MINI+ is fully supported in our own open-source slicing software, PrusaSlicer. It is a feature-rich, frequently updated tool that contains everything you need to export perfect print files. We provide fine-tuned profiles for all supported materials.
