Bondtech LGX Lite Large Gears eXtruder no motor included

By Bondtech

Regular price $ 63.90 $ 0.00 Unit price per

Free shipping in the continental U.S. on orders over $45*

Bondtech LGX Lite Large Gears eXtruder no motor included
Bondtech LGX Lite Large Gears eXtruder no motor included
Bondtech LGX Lite Large Gears eXtruder no motor included
Bondtech LGX Lite Large Gears eXtruder no motor included
Bondtech LGX Lite Large Gears eXtruder no motor included
Bondtech LGX Lite Large Gears eXtruder no motor included

This product only includes the extruder.
Compatible only with 36mm round motors with 10 teeth motor gears equivalent to LDO-36STH20-1004AHG stepper motors.

  • Micro form factor
  • Featherweight
  • Small footprint
  • Powerful filament grip

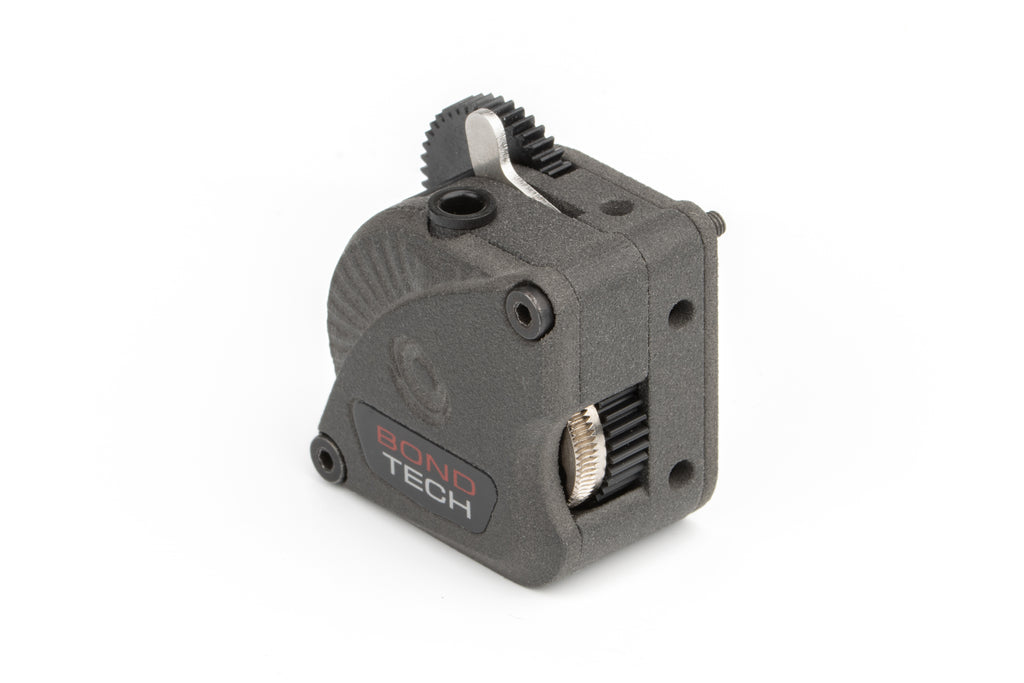

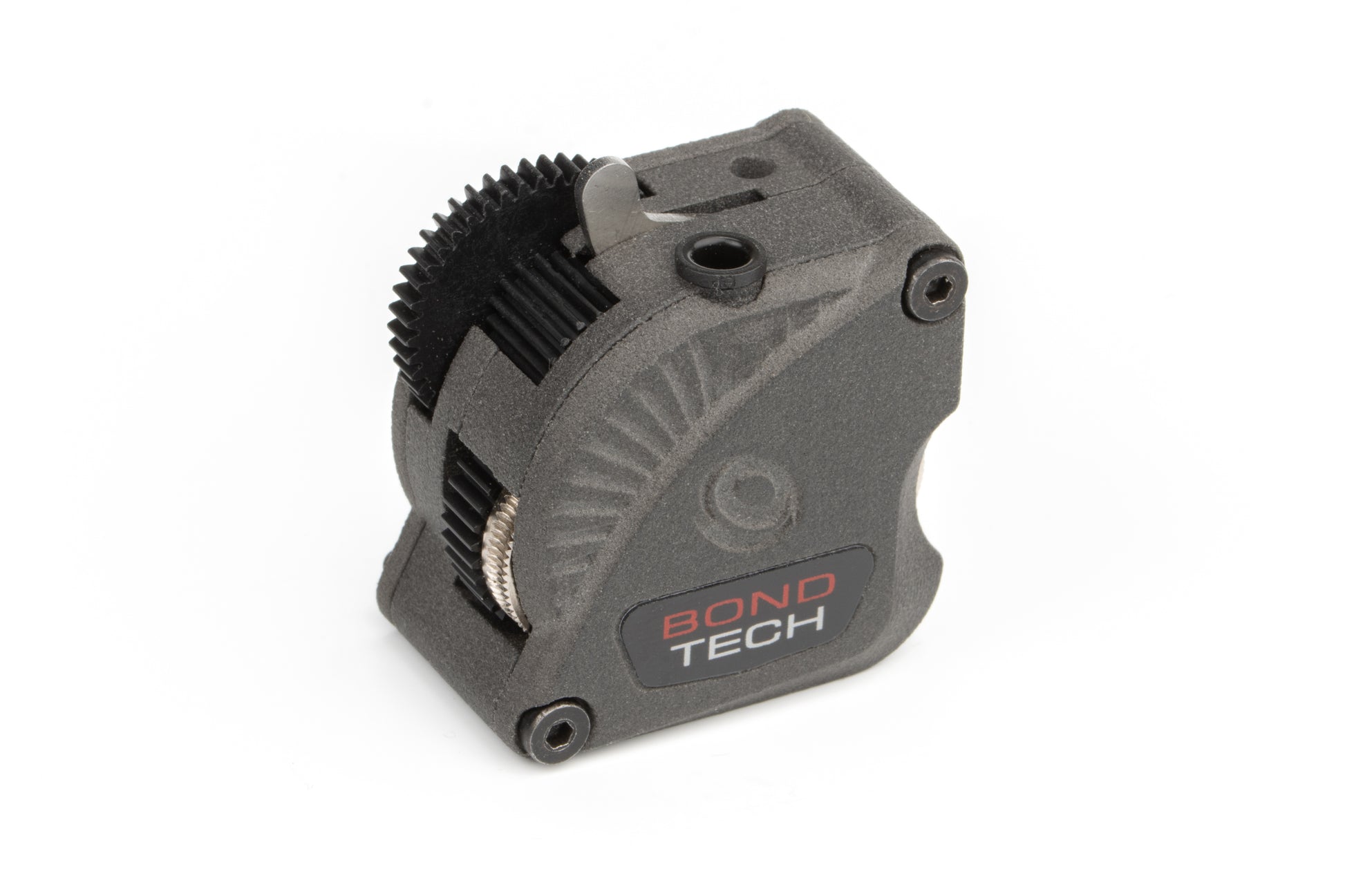

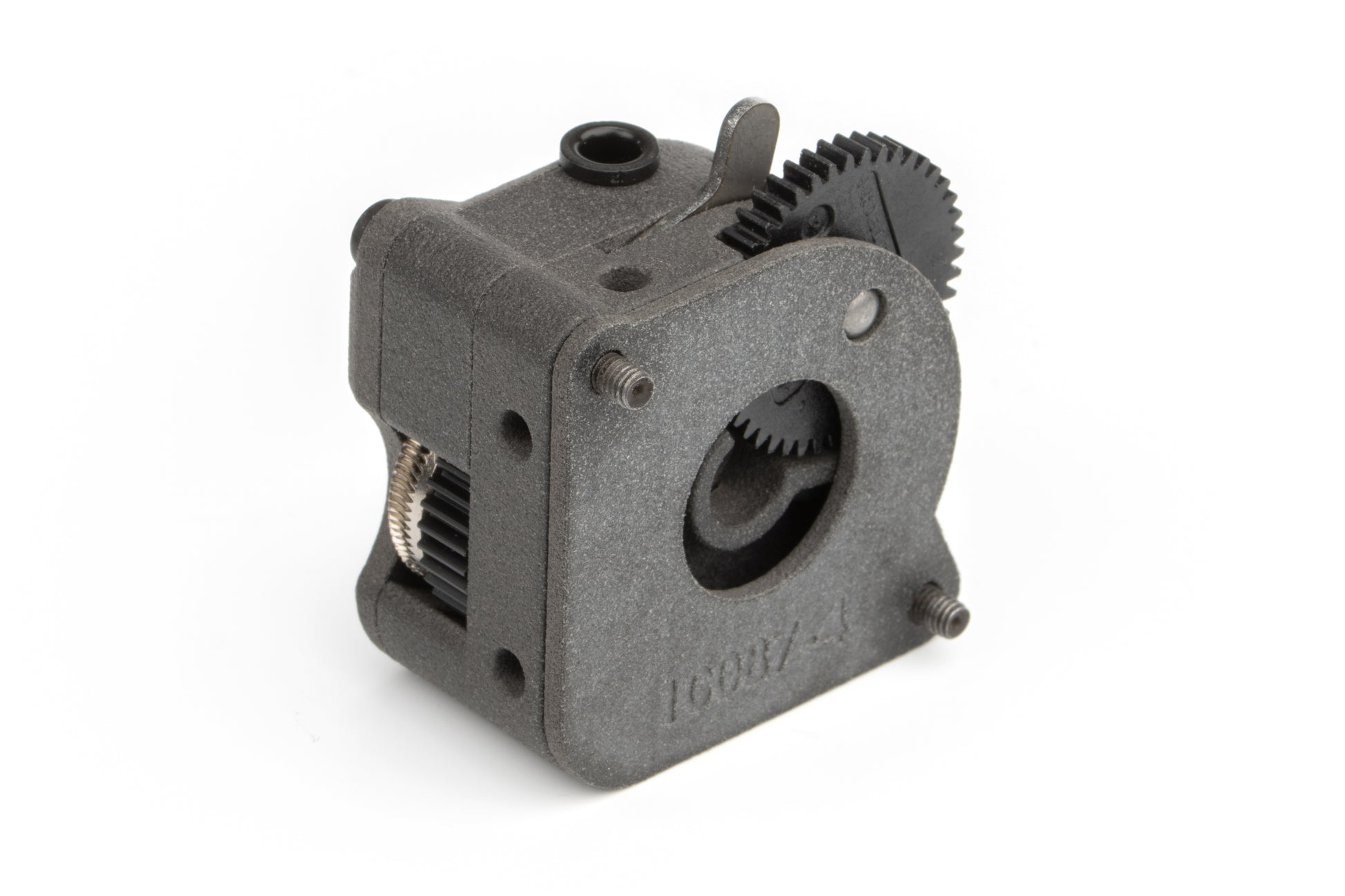

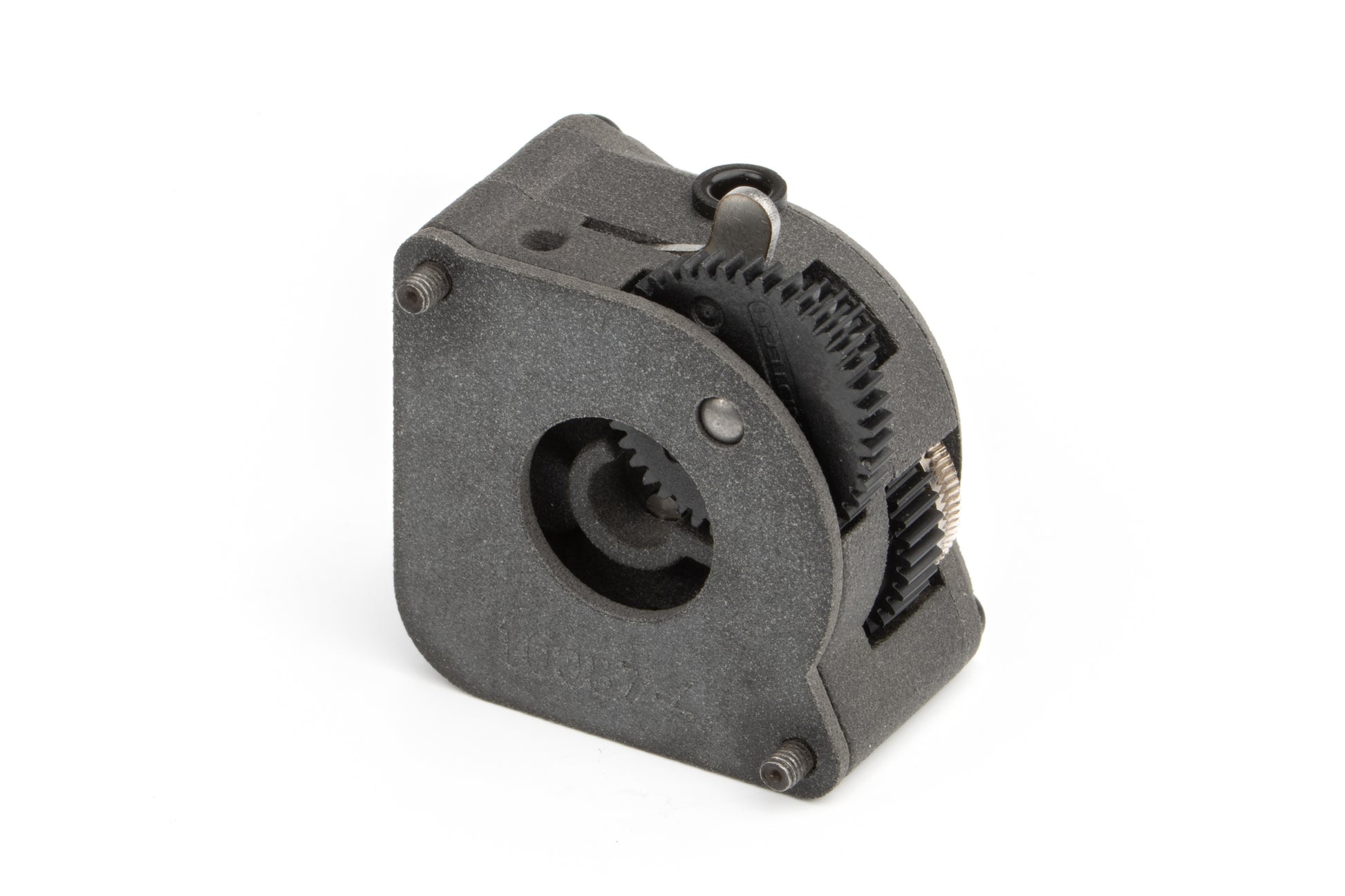

The Bondtech LGX® Lite is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s new Dual Drive Technology based on larger drive gears.

Each LGX® Lite extruder is supplied with:

  • 1x LGX® Lite feeder;
  • 1x 2mm Hex Key (recommended tool);
  • 1x Powered By Bondtech sticker.

Also shipping with additional accessories:

  • 1x Push-fit collar
  • 1x 30mm PTFE tube to use in the PTFE Tube Adapter.
  • 8x M3 square nuts for reinforcing mounting holes.



8 features of this Bondtech eXtruder:

  • Larger drive wheels, for increased filament grip;
  • Filament pre-tension lever, for repeated results;

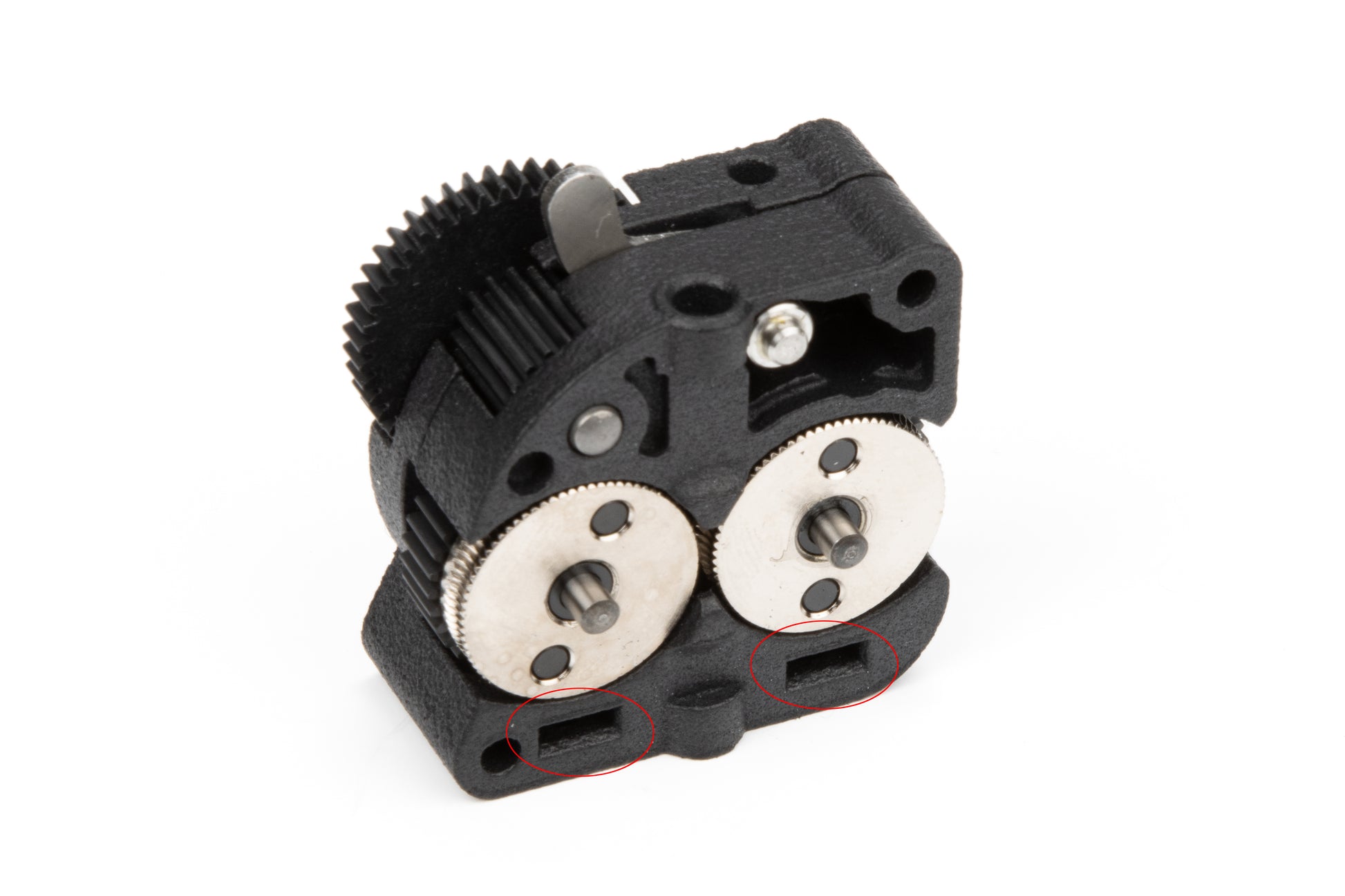

  • Drive wheels’ maintenance windows, for easy cleaning;
  • Compact, light & centered filament path, for increased performance and compatibility;

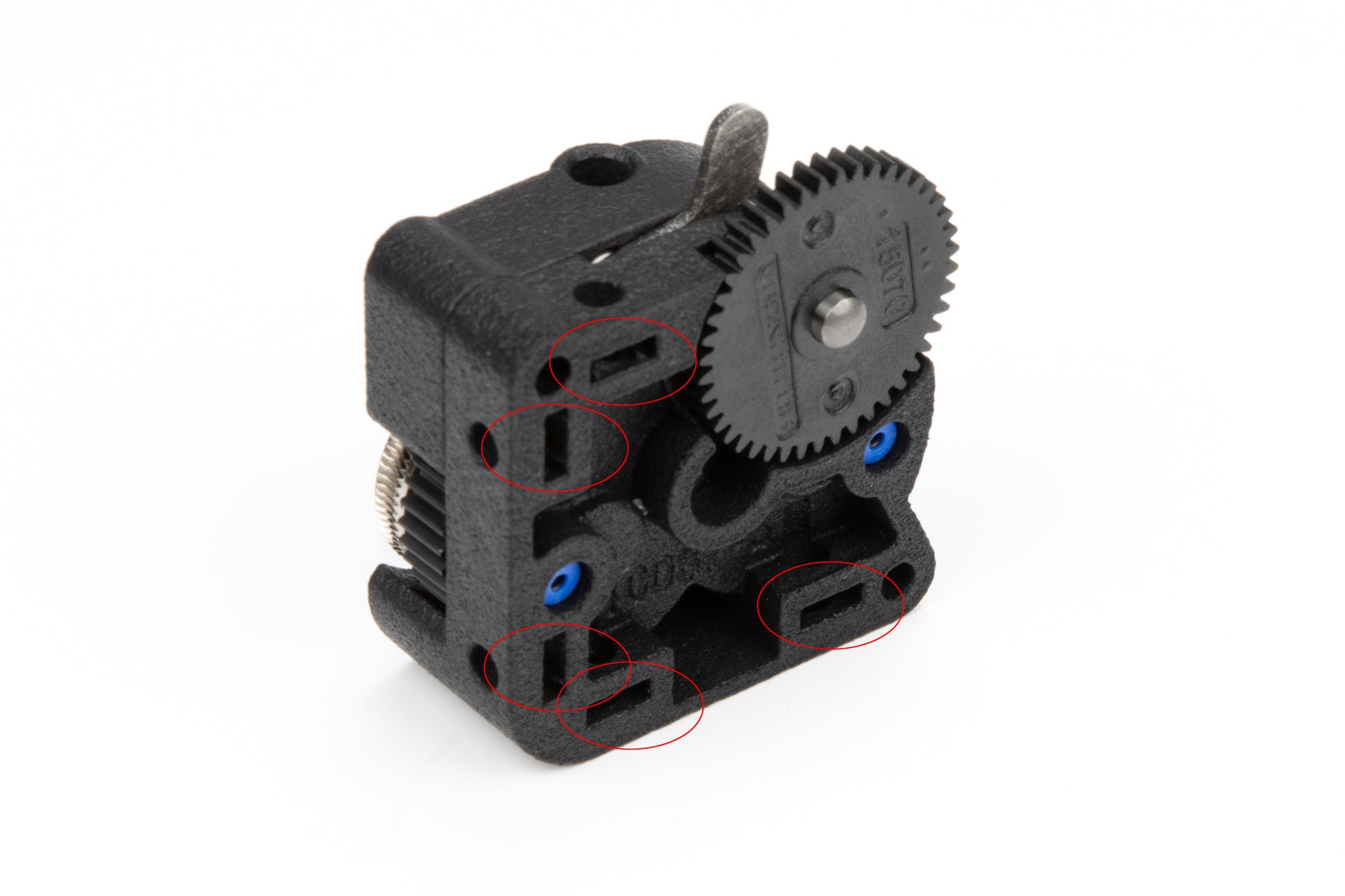

  • Multiple mounting hole patterns, for easy and flexible setup;
  • Compatible with Nema14 round stepper motors;
  • Craft boxes without bleaching & no coating.
  • Nylon housing with no dyeing or other chemical post processing.
3D Printed Housing using PA12

The housing parts are professionally printed with polyamide 12 for maximum strength, precision and higher temperature resistance.



This extruder only supports 1.75 mm size filament.
