Bondtech DDX For Creality 3D printers

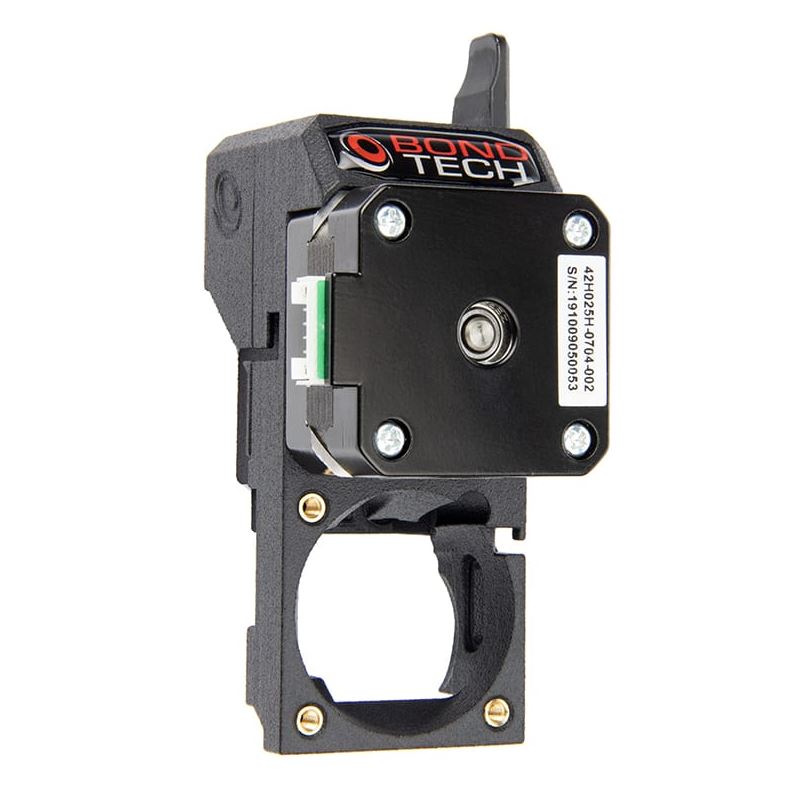

The Bondtech DDX Direct Drive eXtruder for Creality 3D printers is an upgrade kit that replaces the original bowden extruder with a direct drive extruder setup. It is a high-performance Dual Drive extruder based on the BMG Bondtech Mini Geared.
Multiple Hotends Compatibility
This model was created to be compatible with the original hotend of each compatible Creality model, except with the hotend in CR-10 V2/V3. Users may upgrade the hotend to Copperhead™ or Mosquito™. To upgrade the hotend, a specific adapter set is required.
The DDX v3 is much easier to install
With the integrated fan shroud and mount included in the DDX v3 adapter sets, the DDX v3 is even easier to install. Snap the fan to the shroud without using screws. Adjust the height of the shroud with one front access screw.
[DDX v3 fan shroud height adjustment]
Using a bed probe with DDX v3
The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no space to attach a bed probe like the BL Touch, to the X-carriage, a mount can printed and attached to the right hand side of the DDX.
A DDX v3 Adapter set is required to use this product
To upgrade the hotend, a specific sets of adapters will be required.
- DDX v3 Adapter Set For Creality CR-10 Pro / Max
- DDX v3 Adapter Set for CR-10 v2 & v3
- DDX v3 PA12 Fan Shroud for Ender/CR-10(S)
Easy To Setup
For ease of setup the kit is attached to the carriage with only 2 screws.
Product includes:
1x DDX v3 Extruder
1x Nema17 Pancake stepper motor
1x Thumbscrew Assembly
1x 70cm Stepper motor extension cable
1x 60cm PTFE tube
1x 7cm Capricorn tube
4x Zip-ties
3x M3x12mm screw
2x M3x20mm screw
1x M3x10mm button head screw
Bondtech DDX Direct Drive eXtruder
This Direct Drive eXtruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG. Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading hotends Copperhead™ or Mosquito™ from Slice Engineering gives you a direct drive extruder with problems free material feeding and enables the use of a wider range of materials. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using industrial grade SLS technology.
Make your 3D printer even better
Bondtech DDX Direct Drive eXtruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX housing design provides an effective Hot-End cooling. With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.
