LDO BLV Cube Motor Kit

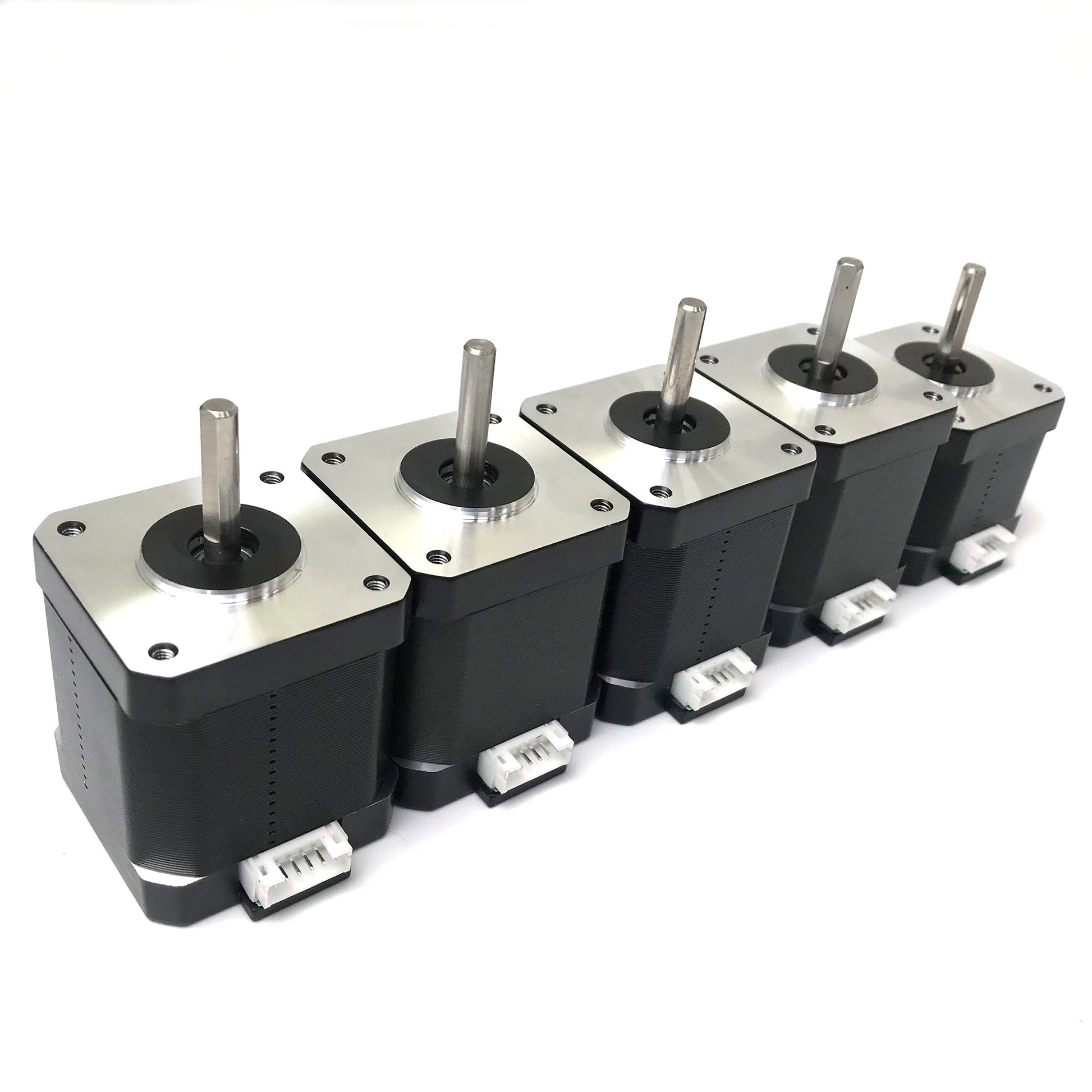

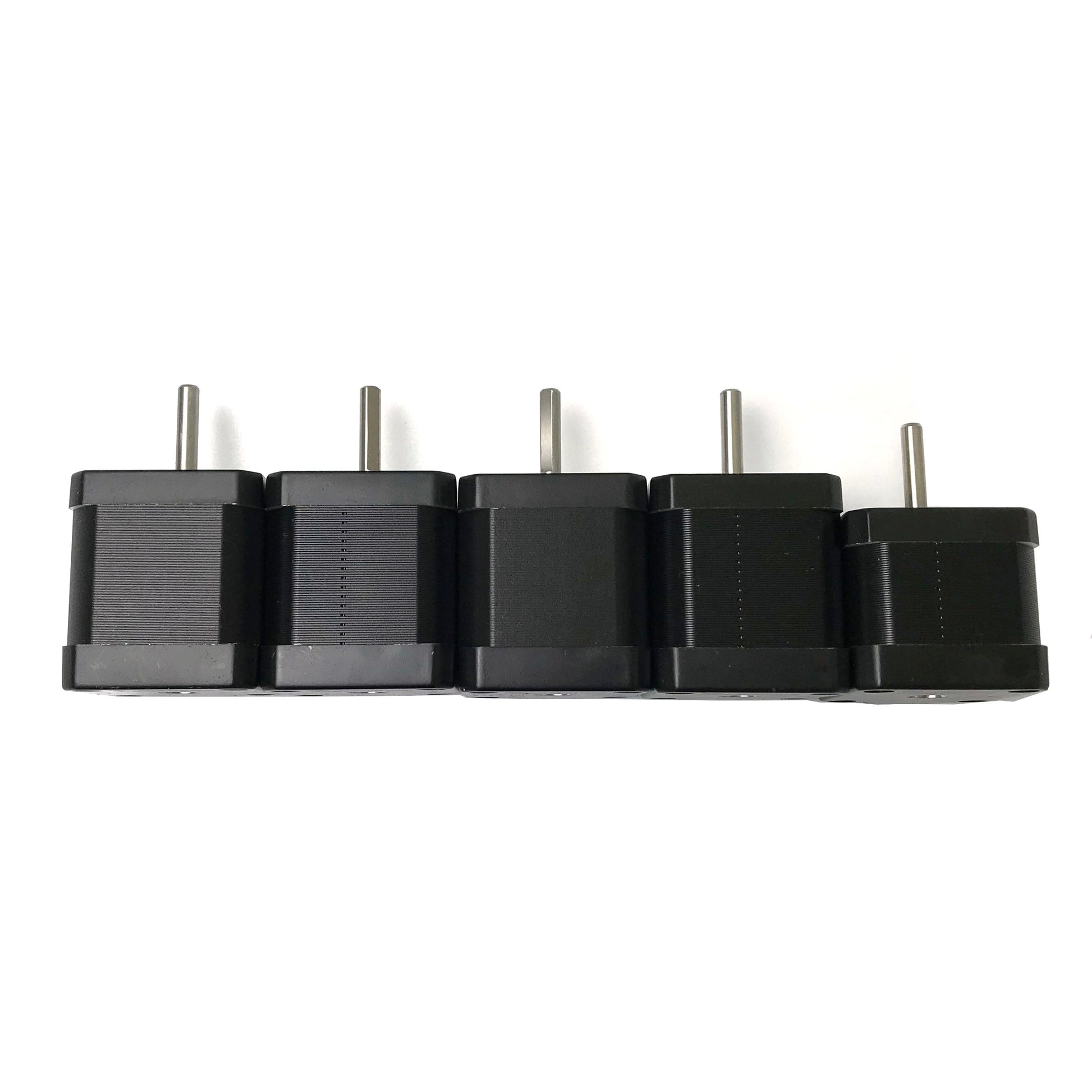

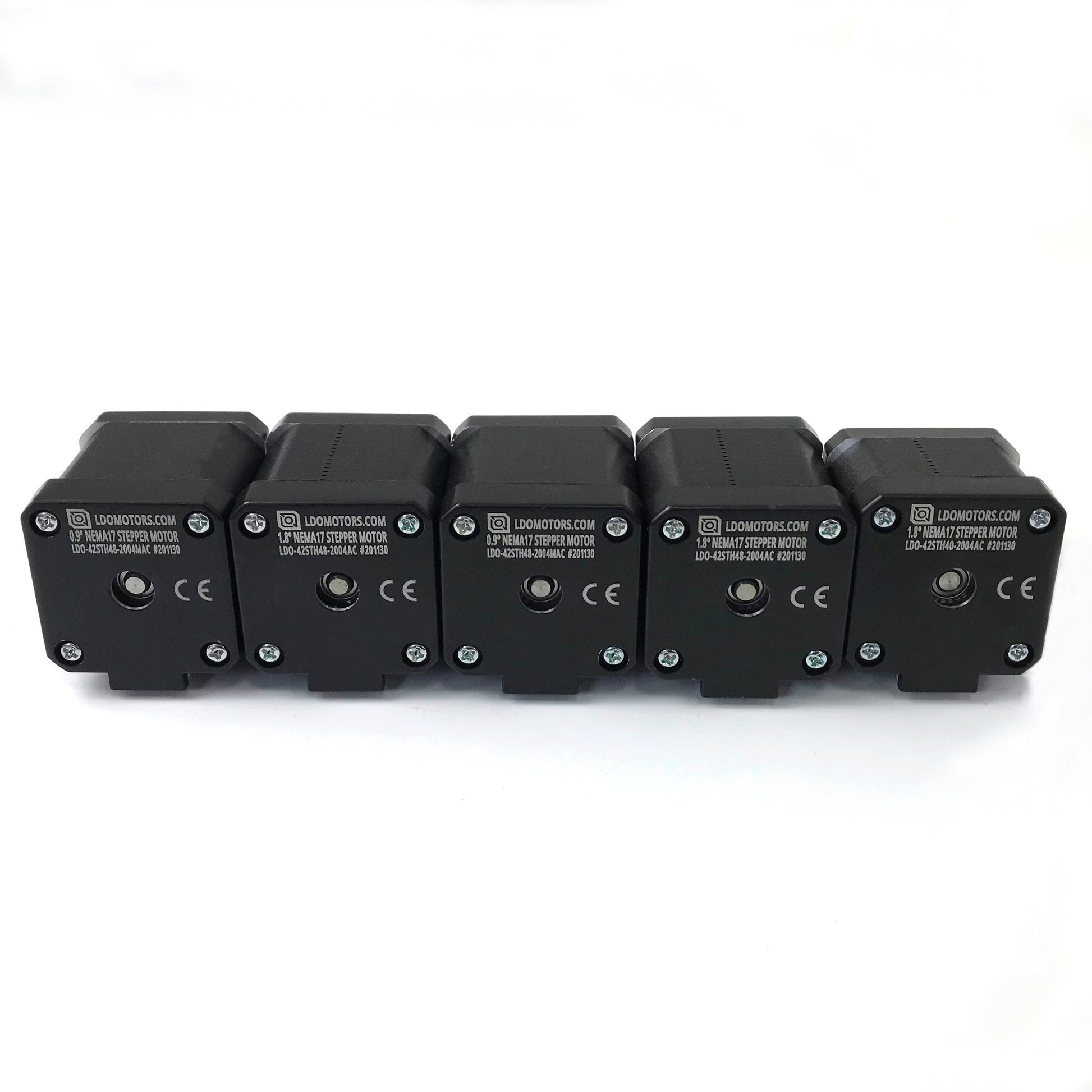

5 piece motor set for the BLV Cube 3D printer with all the wires already terminated, labeled and ready to go.

2 LDO-42STH48-2004MAC (X-Y Motor)

• NEMA 17
• 0.9° Step Angle
• 400 Steps Per Revolution
• 2 Amp
• 6Kgf-cm (125oz) Holding Torque
• 48mm Body
• 24mm Output Shaft (5mm diameter)

2 LDO-42STH48-2004AC (Z Motor)

• NEMA 17.
• 1.8° Step Angle.
• 200 Steps Per Revolution.
• 2 Amp
• 0.59N-cm Holding Torque.
• 48mm Body.
• 22mm Output Shaft (5mm diameter)

1 LDO-42STH40-2004AC (Z Motor)

• NEMA 17.
• 1.8° Step Angle.
• 200 Steps Per Revolution.
• 2 Amp
• 0.59N-cm Holding Torque.
• 40mm Body.
• 22mm Output Shaft (5mm diameter)
