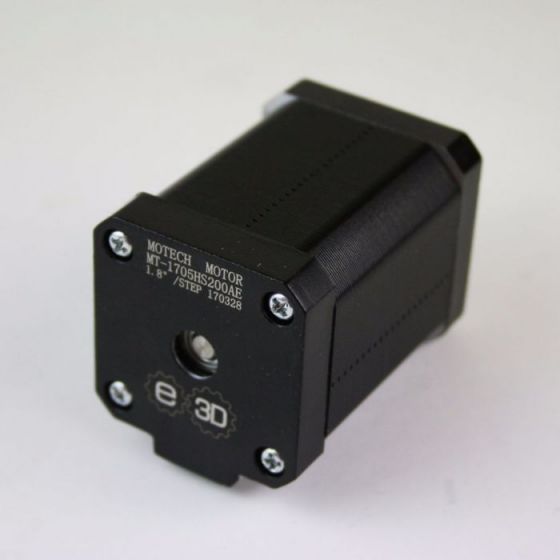

E3D Stepper Motor - Super Whopper
E3D Stepper Motor - Super Whopper
-
If planning on using this motor, we suggest using a high current stepper driver such as the DRV 8825. Whilst standard drivers such as the A4988 can produce the 2.0A rated current of this motor, this is at the limit of their specification so they may be prone to overheating, triggering their thermal overload protection. This will cause the motor to stop running, but won't damage any circuitry.
Also, note that the step angle for this motor is 1.8 degrees instead of 0.9 degrees on the rest of our range. If upgrading to a super whopper ensure that your firmware's steps/mm are adjusted accordingly (i.e. double).
- NEMA 17.
- 1.8° Step Angle.
- 200 Steps Per Revolution.
- 4V Rated Voltage.
- 2A Phase.
- 8.2kg/cm (114oz/in) Holding Torque.
- 60mm Body.
- 5mm Output Shaft.
