Duet3D Filament Monitor Rotating Magnet Version V2 no housing

By Duet3D

Regular price $ 52.95 $ 0.00 Unit price per

Free shipping in the continental U.S. on orders over $45*

Duet3D Filament Monitor Rotating Magnet Version V2 no housing
Duet3D Filament Monitor Rotating Magnet Version V2 no housing

The Duet3D filament monitors sense filament movement and so can indicate a that filament has run out, jammed or has been ground away in the extruder. This is the magnetic filament monitor version . So called because it uses a rotating magnet to very accurately detect movement.



The printed parts are not supplied; the housing models are available here and should be printed with a layer height of 0.2mm (including the first layer). This will ensure the correct distance between the magnet and the sensor PCB.

https://github.com/Duet3D/FilamentMonito...

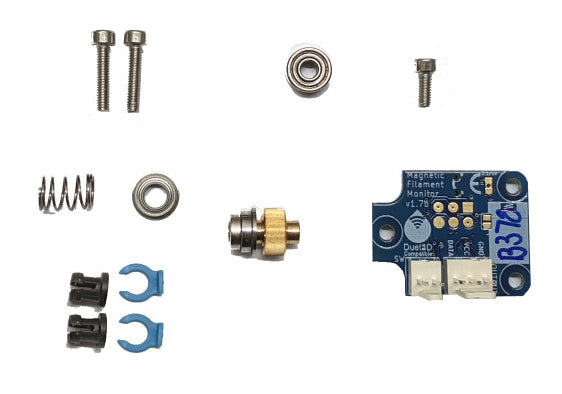

The filament monitor consists of a PCB which senses the rotation of a diametrically magnetised magnet. That magnet is in turn rotated by the filament motion via a hobbed part. The angle is reported to the Duet



Please read over the documentation on Duet3D's site as this is a more advance feature to implement. https://duet3d.dozuki.com/Wiki/Duet3dFilamentMonitor_RotatingMagnetVersion
