Safety Enclosure for Prusa Printers

Printed Solid


Assembly Instructions

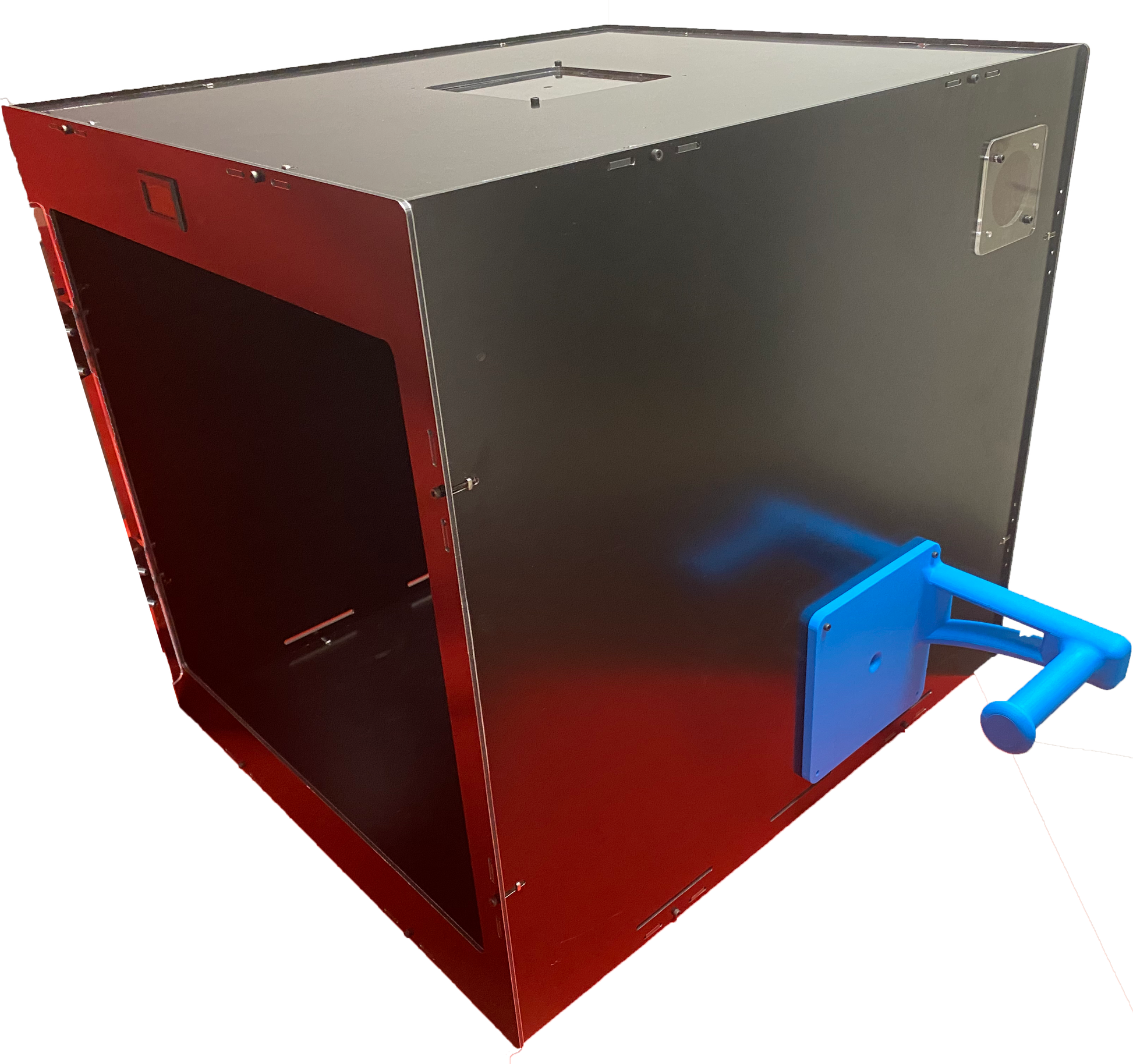

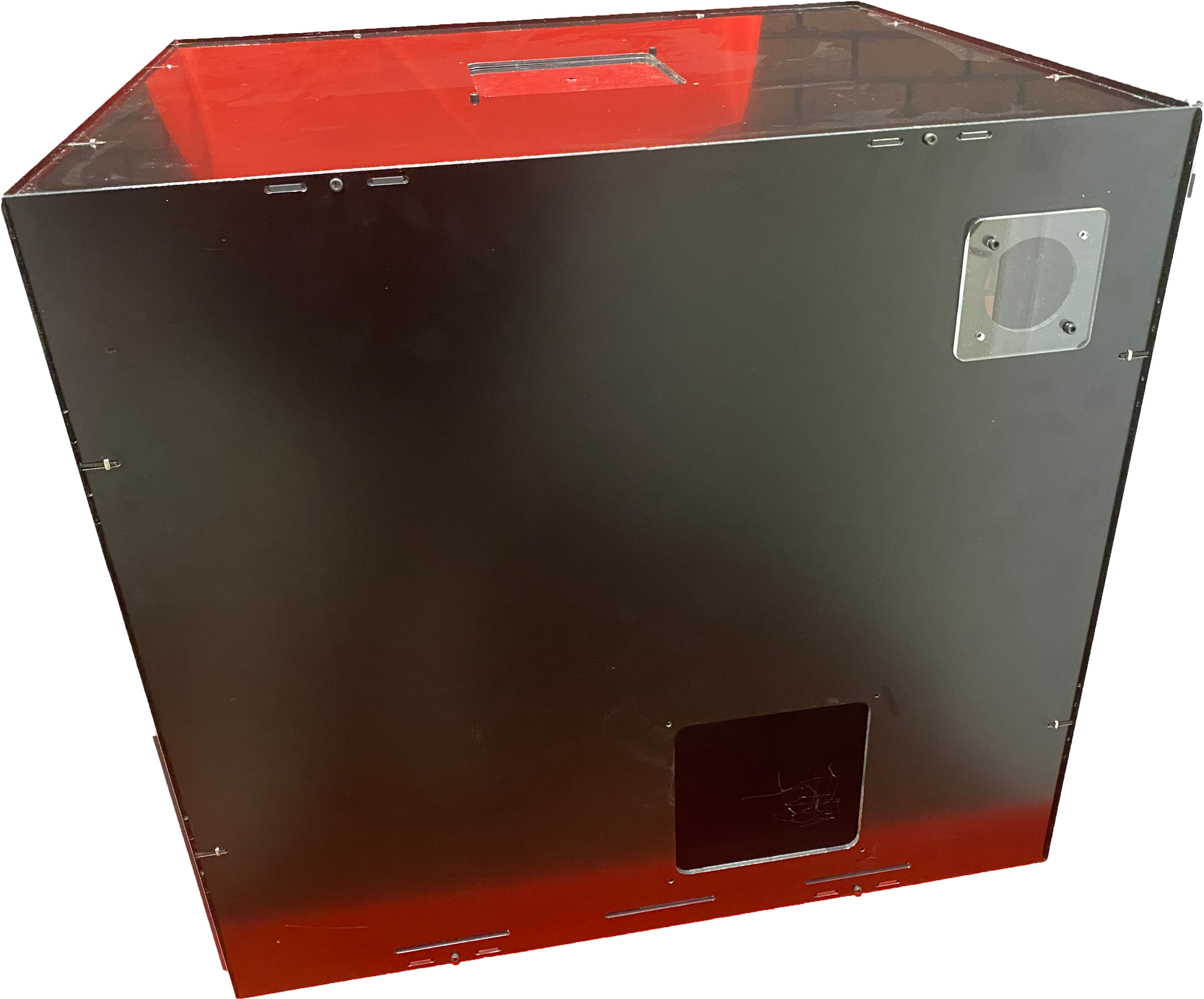

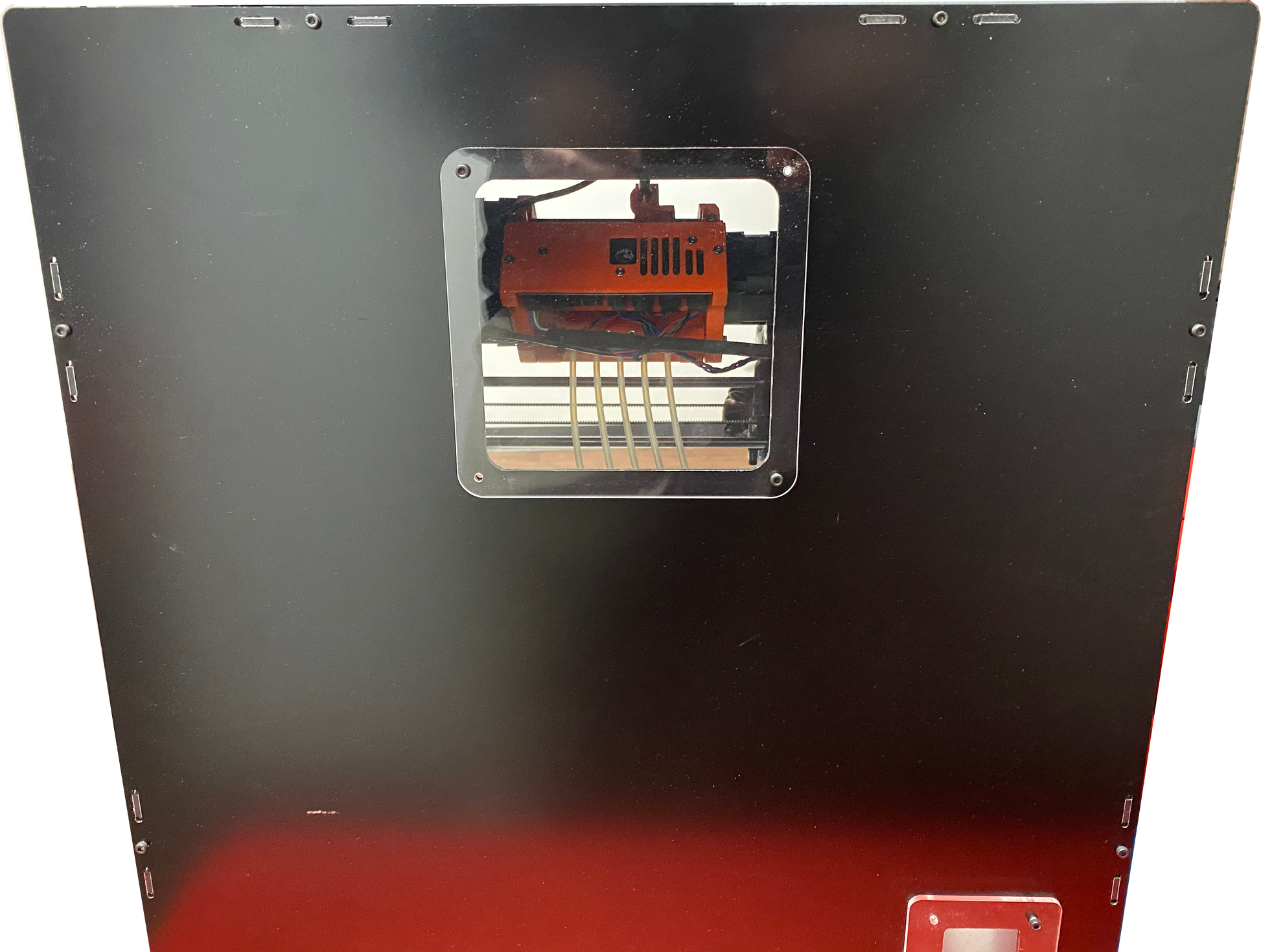

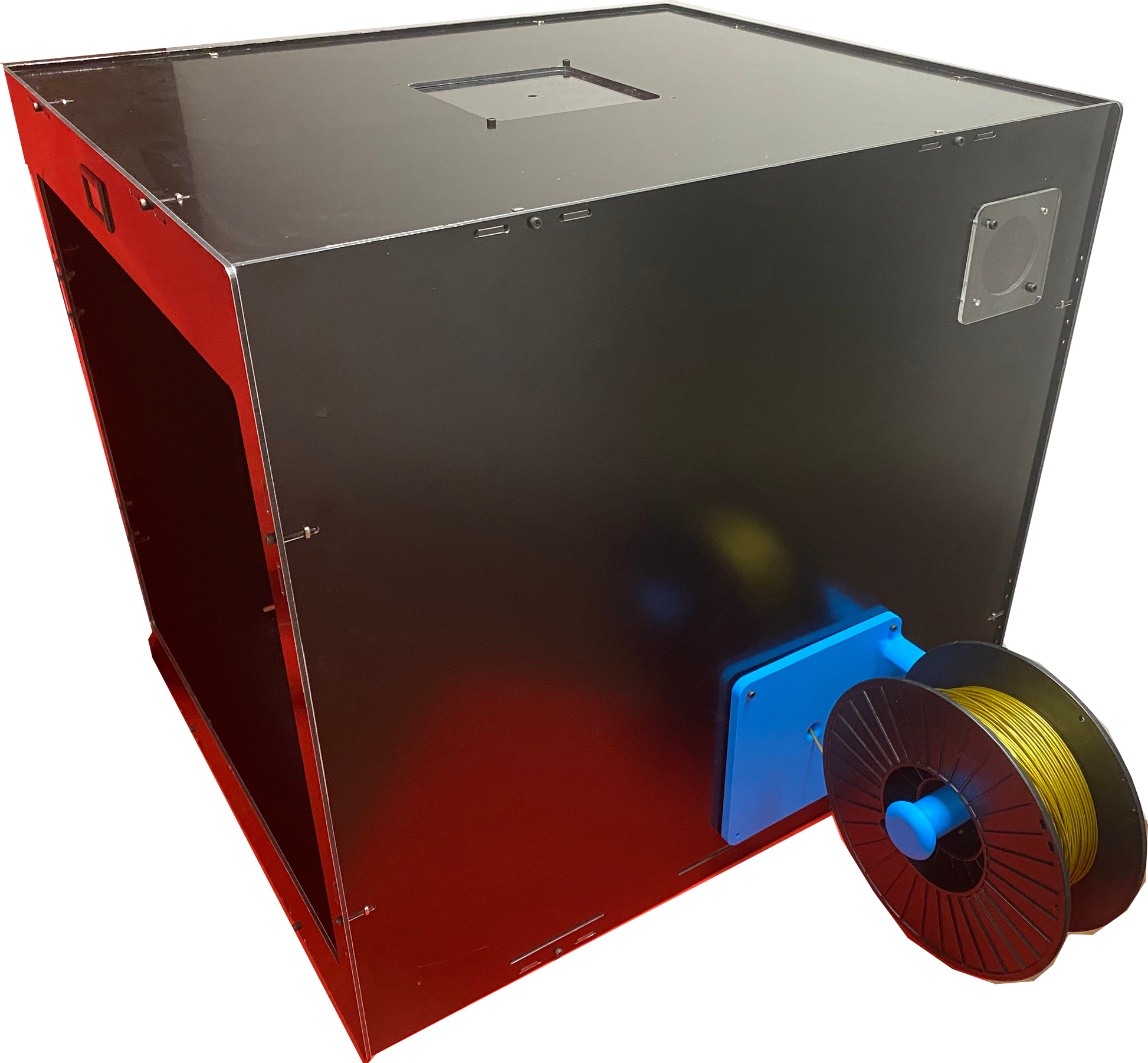

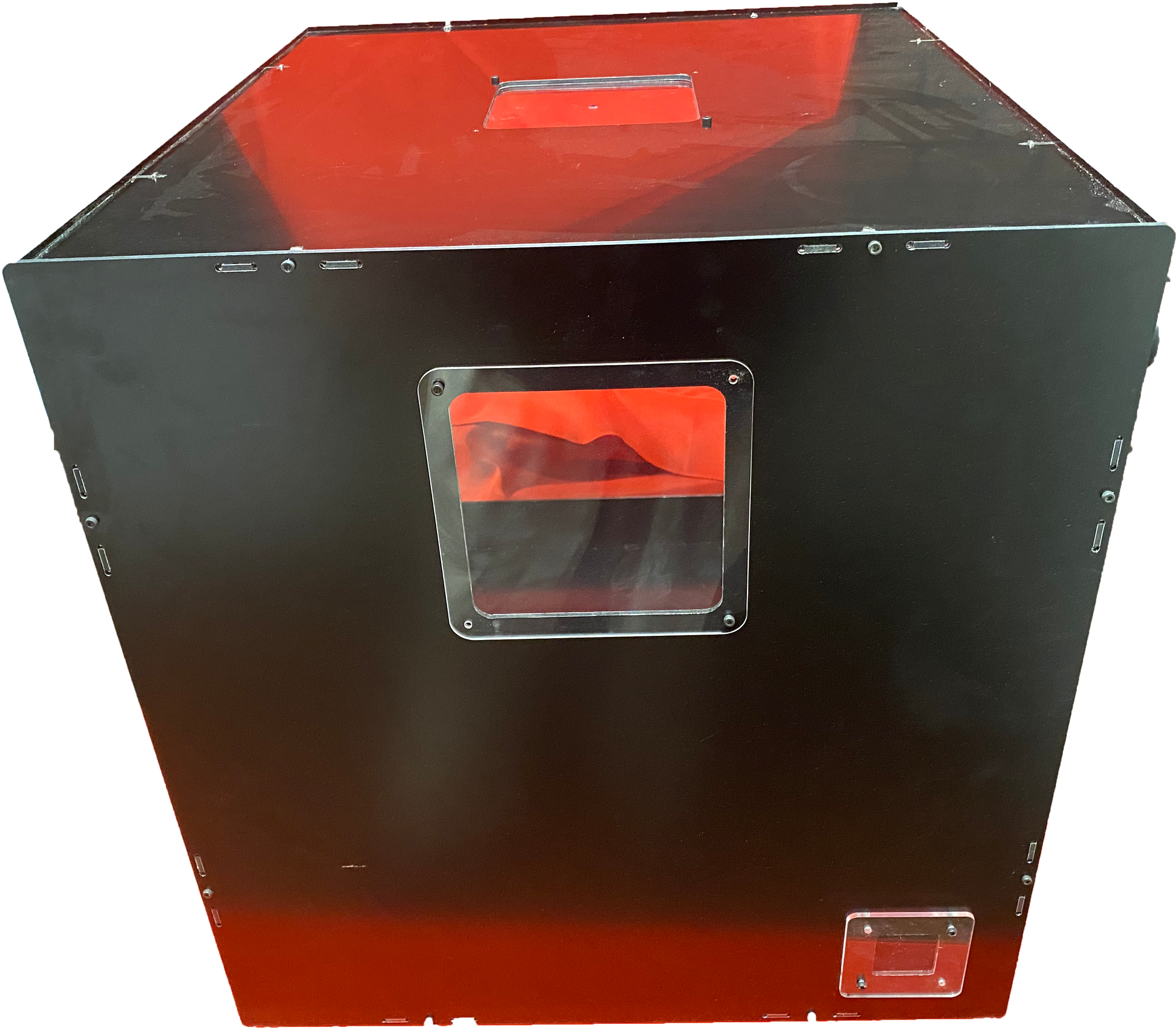

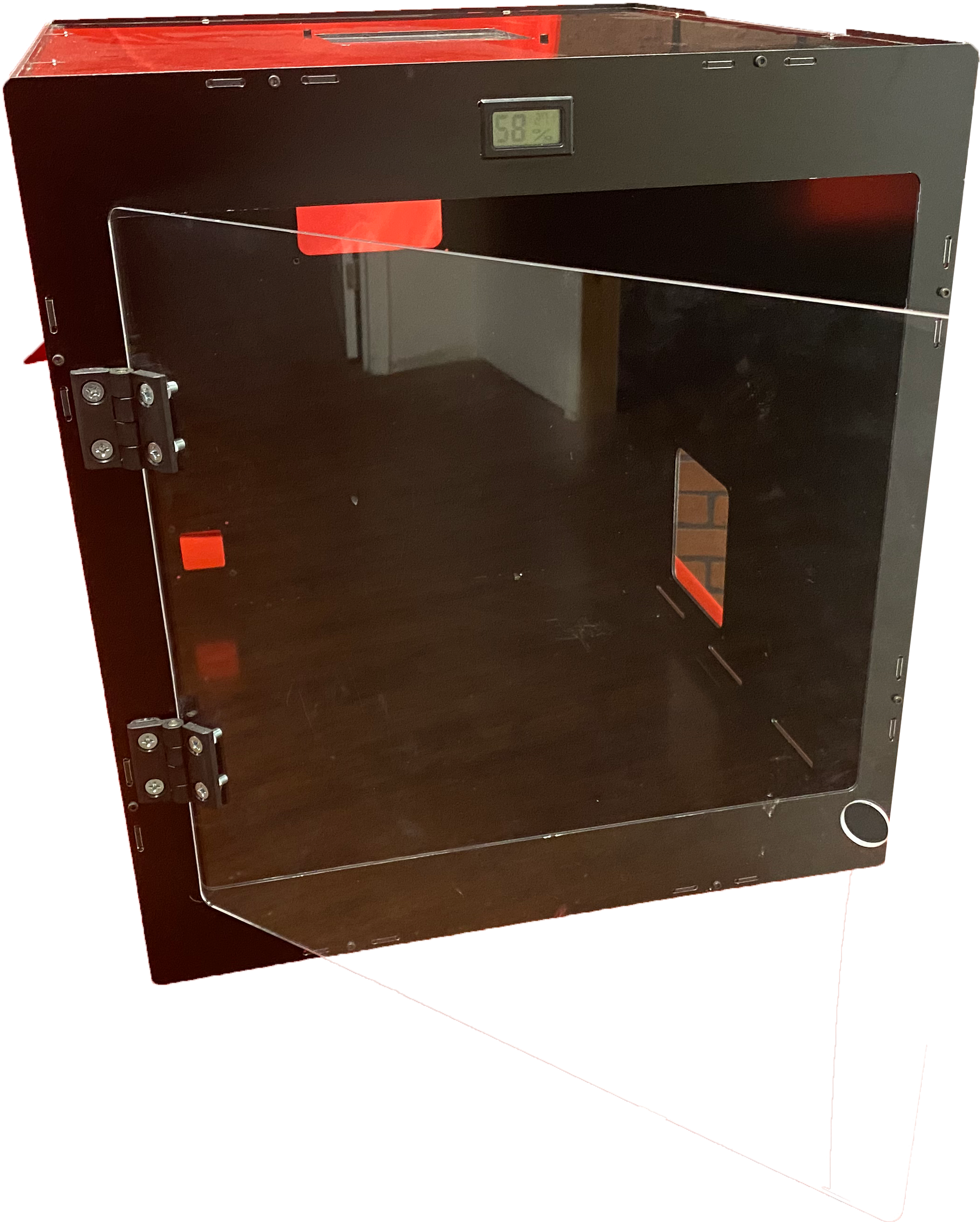

This is an enclosure kit for Prusa MK2 / MK2S / MK3 printer.

Help regulate the temperature and reduce drafts for improved print quality and keep curious fingers (or paws) off of your print. You also get a slight reduction in the already low noise output of the printer.

The kit includes an instruction sheet, the laser cut panels, door hinges, and fasteners.  The Prusa 3D printer is not included with the enclosure kit.

Some of the features of the design that we think are really neat:

  • Enclosed build chamber

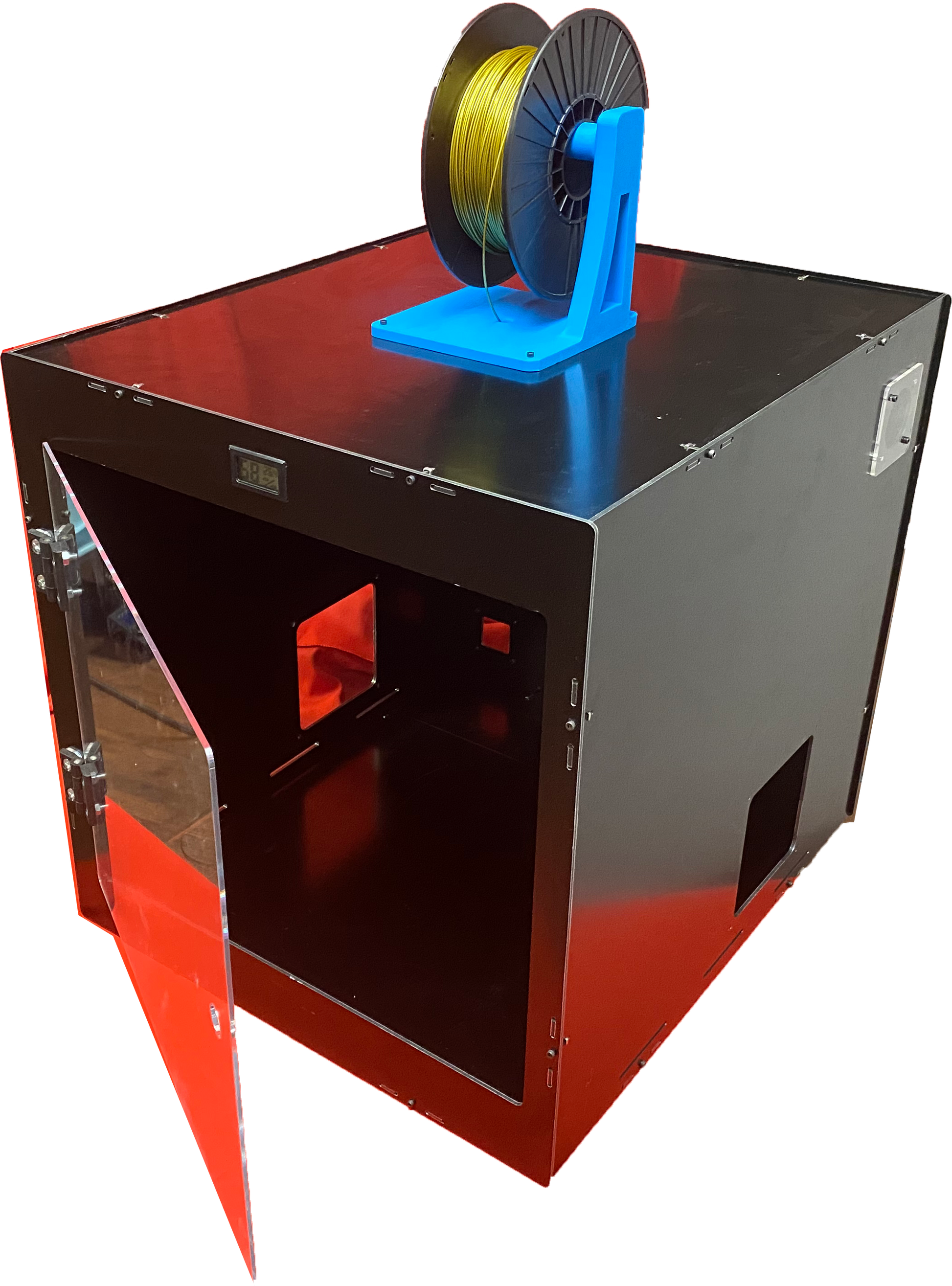

  • Hinged doors on the front and back of the enclosure
  • Knock out holes for a BOFA Print Pro 3 HEPA filter system or mount your own 60mm fans on the side.
  • That sweet laser engraved PrintedSolid.com logo on the front.  You know you want that, right?  OK.  If you don't like it, we include a sticker in each order to cover it up...  or you could use your own.
  • No glue is required for assembly and can easily be disassembled for moving or replacing panels if damaged.
  • No drilling, cutting, or other modifications to the printer itself are required.

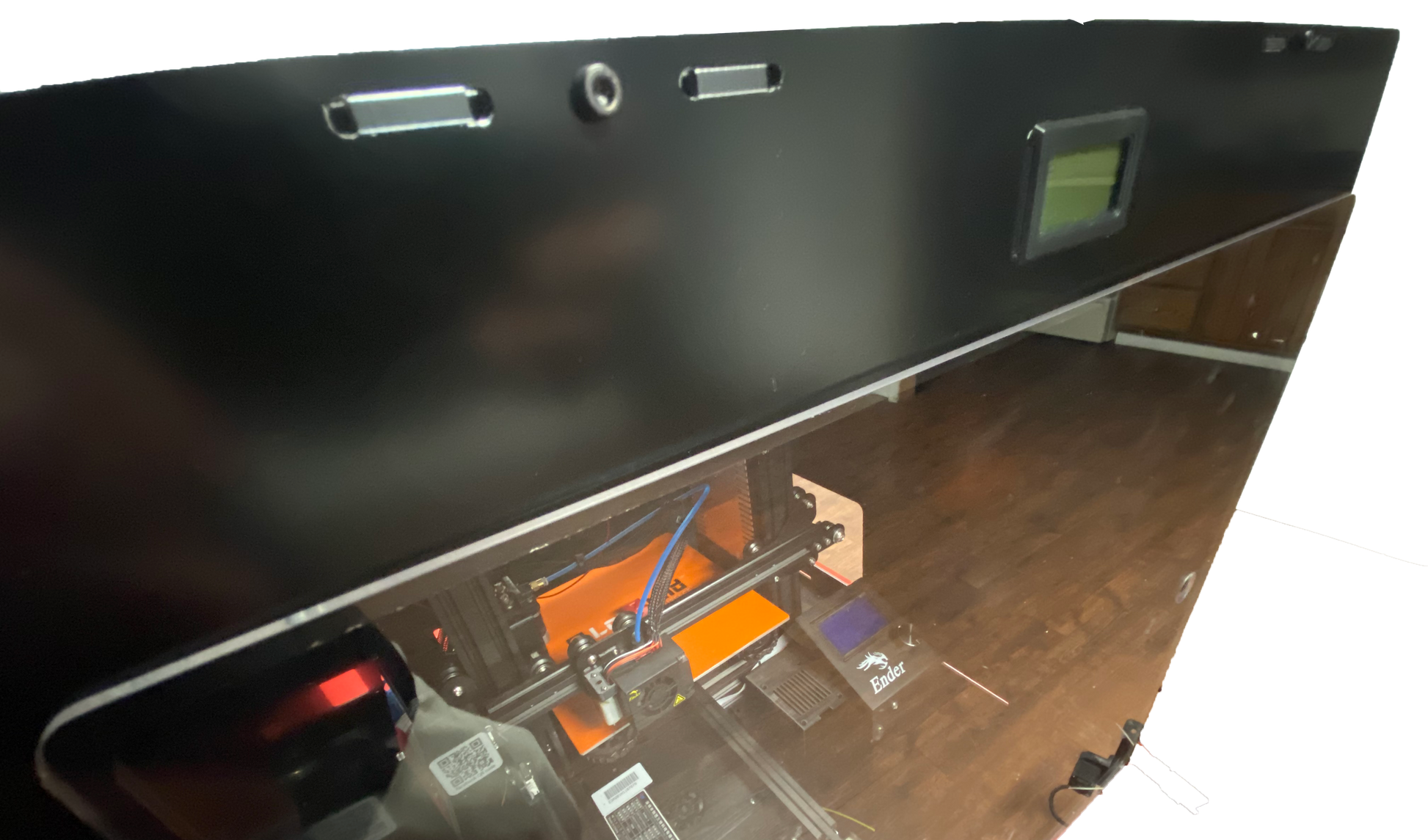

  • Mount points for a Raspberry Pi and knock out holes for mounting the control panel external of the case with extra ribbon cables. *Not included*

All of our enclosures have the option to add a BOFA HEPA air filtration system which is considered to be the industry leaders in filtration. The 3D PrintPRO range of extraction systems combine high capture performance with proven filter technology, ensuring the effective removal of hazardous particulate, gases/vapours and odours associated with 3D printing methods.

The BOFA PrintPro2 is lower print option without a return hose ideal for materials that do not need a warm build chamber.

The BOFA PrintPro3 is a higher end solution with a return hose and variable speed, making it ideal for ABS/ASA/Nylon printing.

To mount the hose to the enclosure you will need to print this hose adaptor to easily attach the BOFA to any of our enclosure designs. You can download them here.



Dimensions:

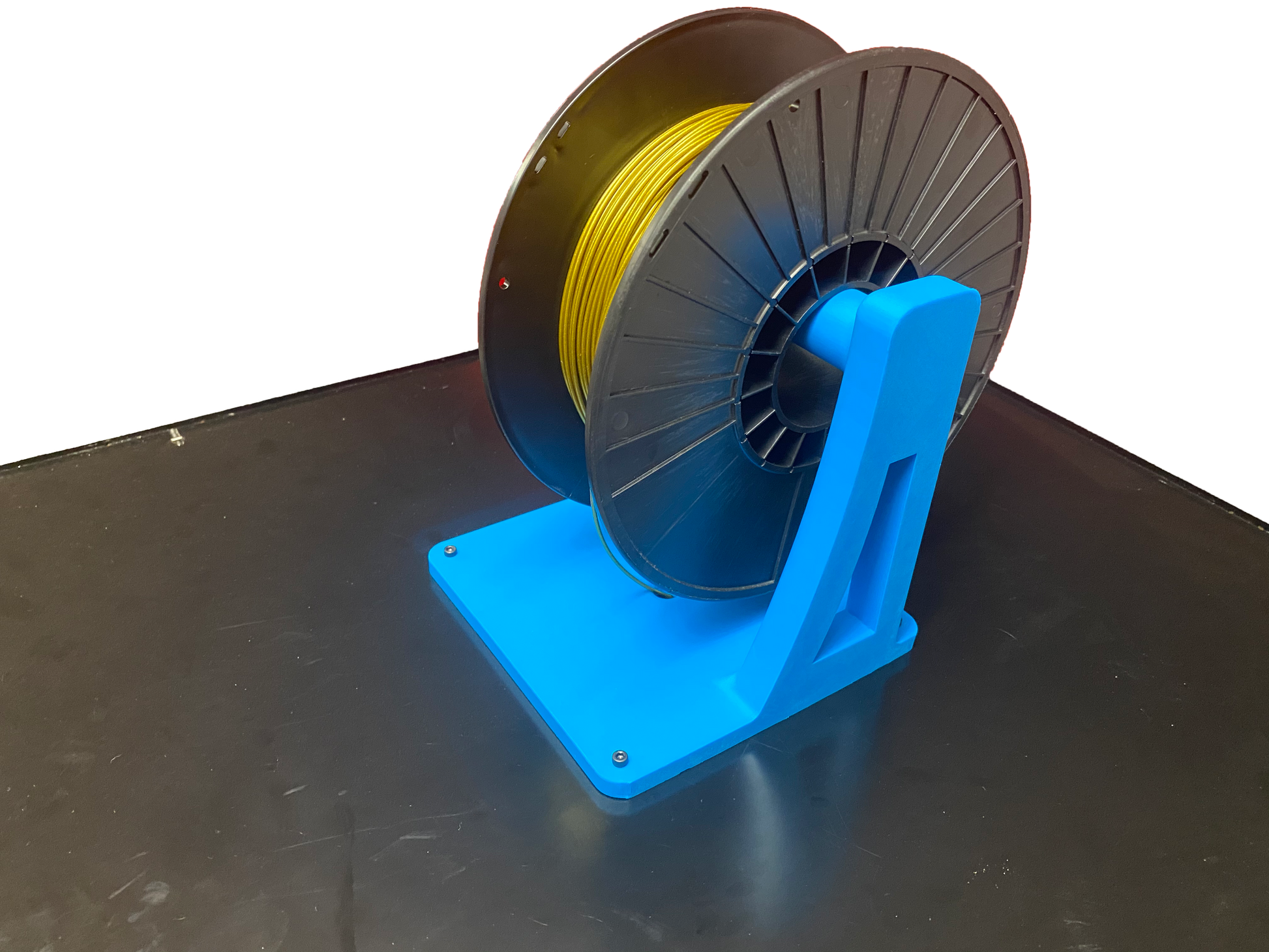

External dimensions are 22.25" deep by 18.94" wide by 20.5" tall w/o spool holder on top.
Printer must be no more than 15.5" tall by 17" wide and 21.75" deep
