Duet PanelDue 5i or 7i Integrated

Duet3D

Collections: All Products, Duet, Top Sellers

Type: Accessory

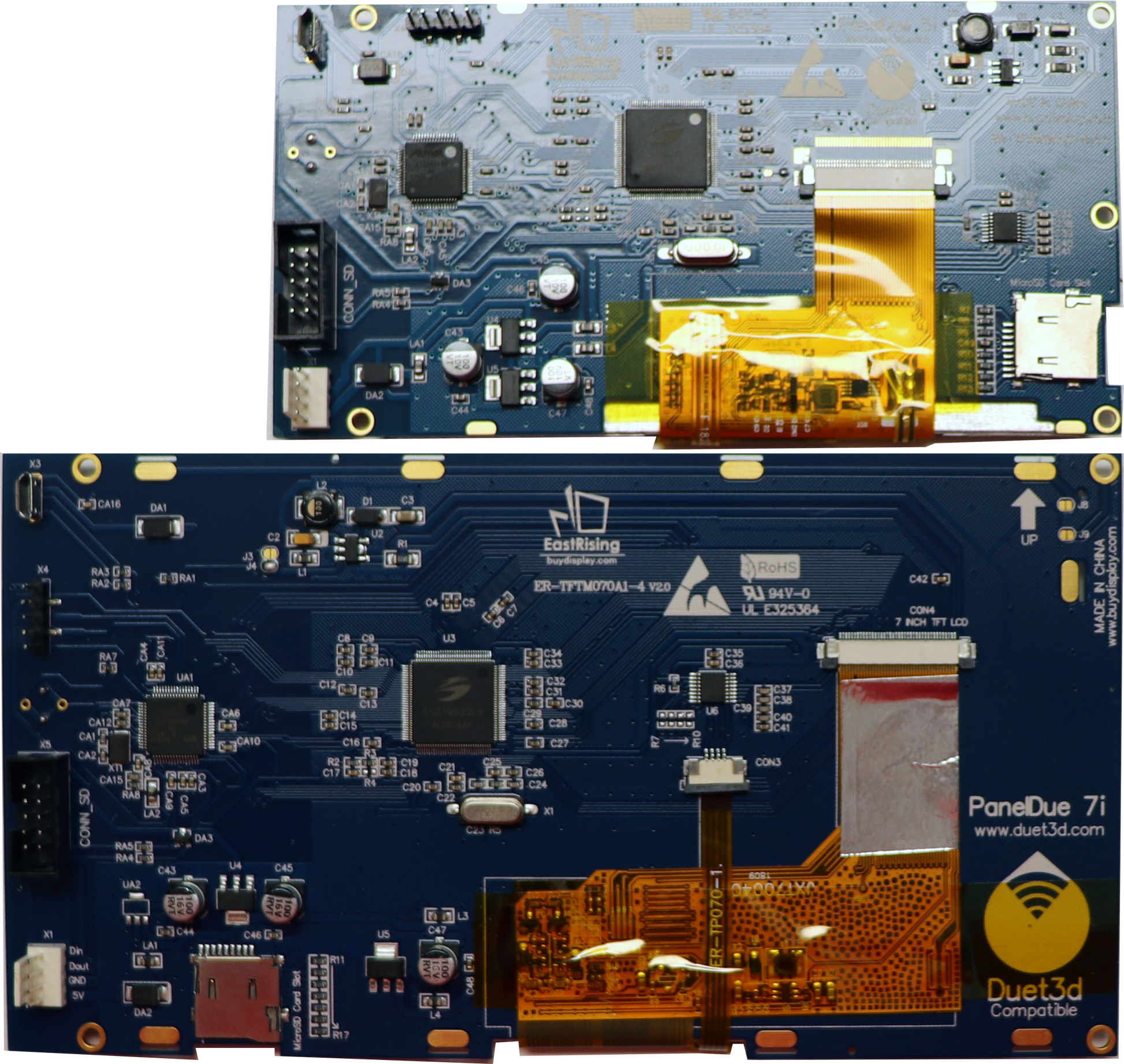

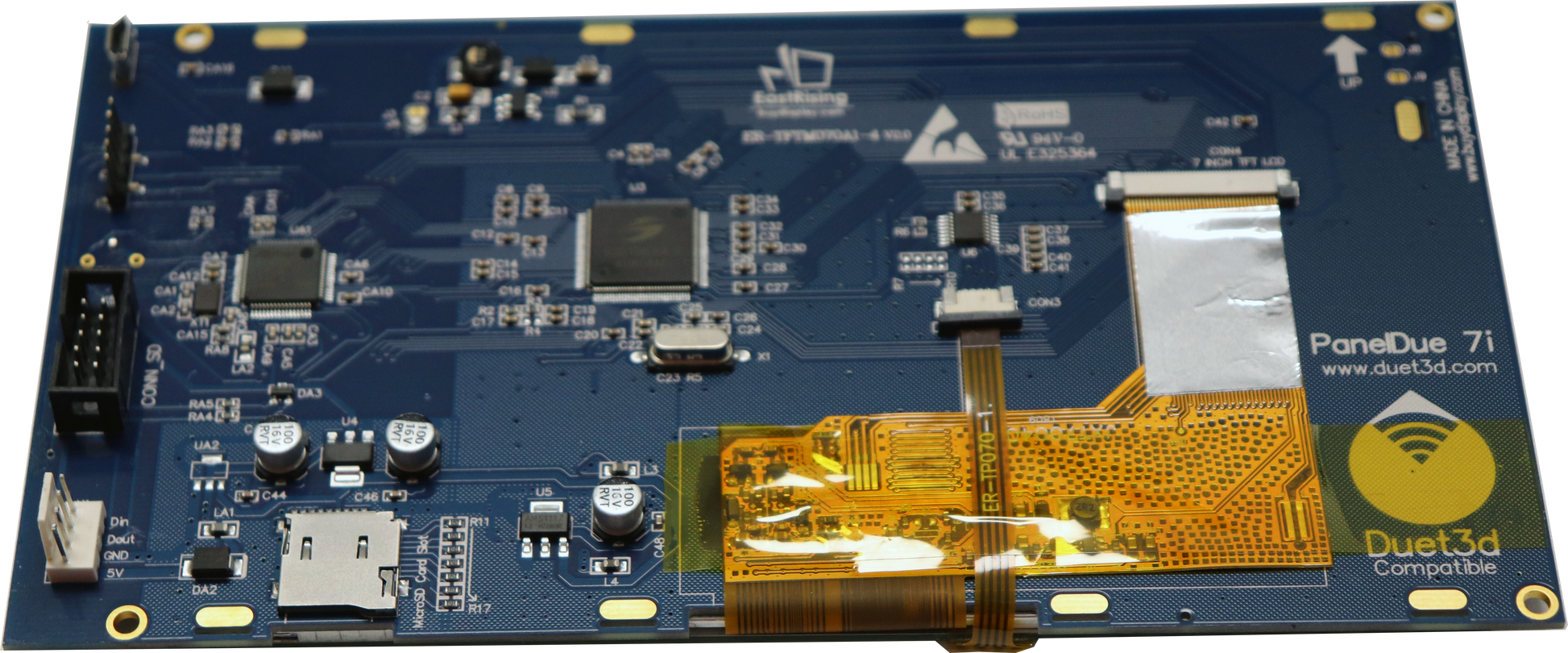

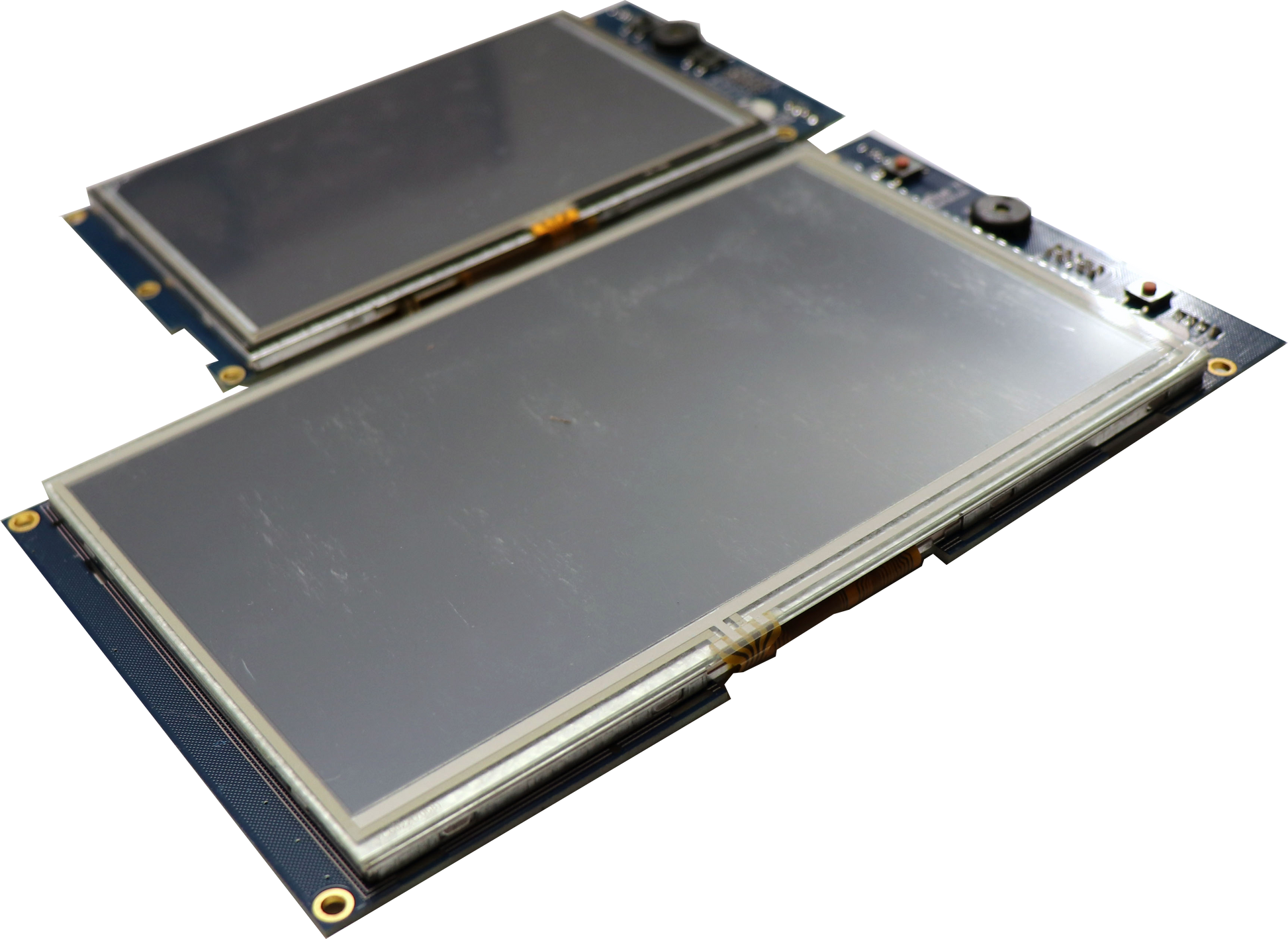

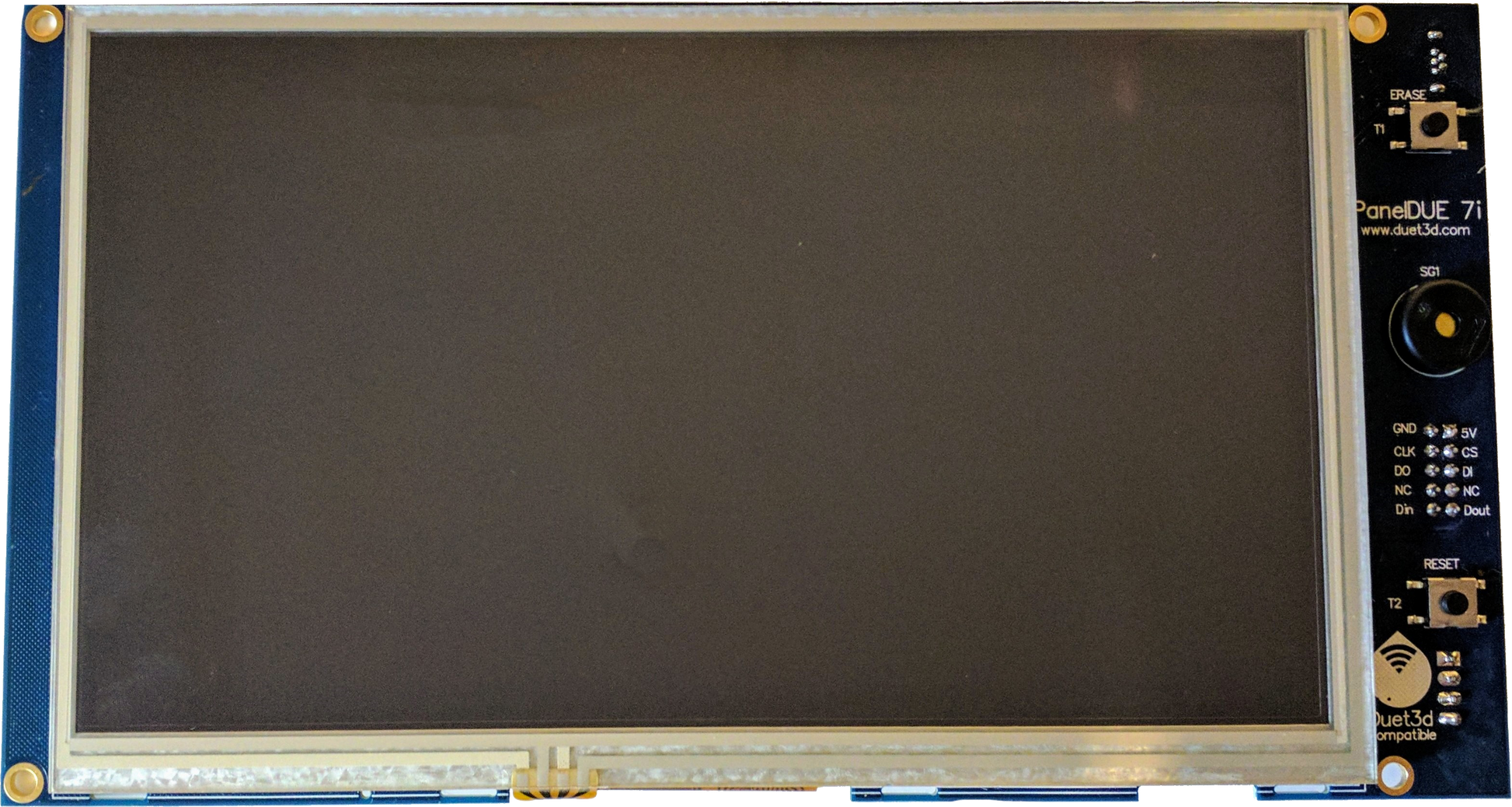

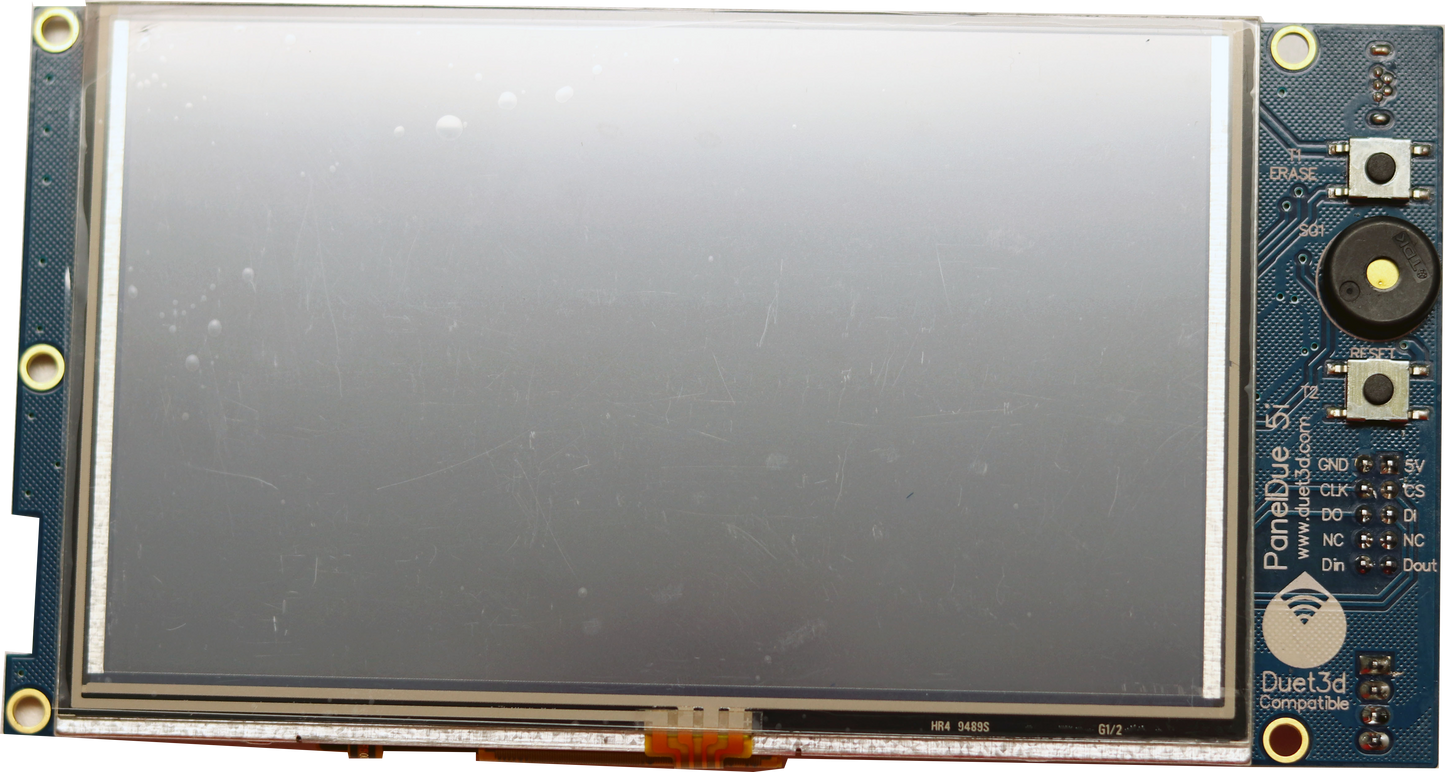

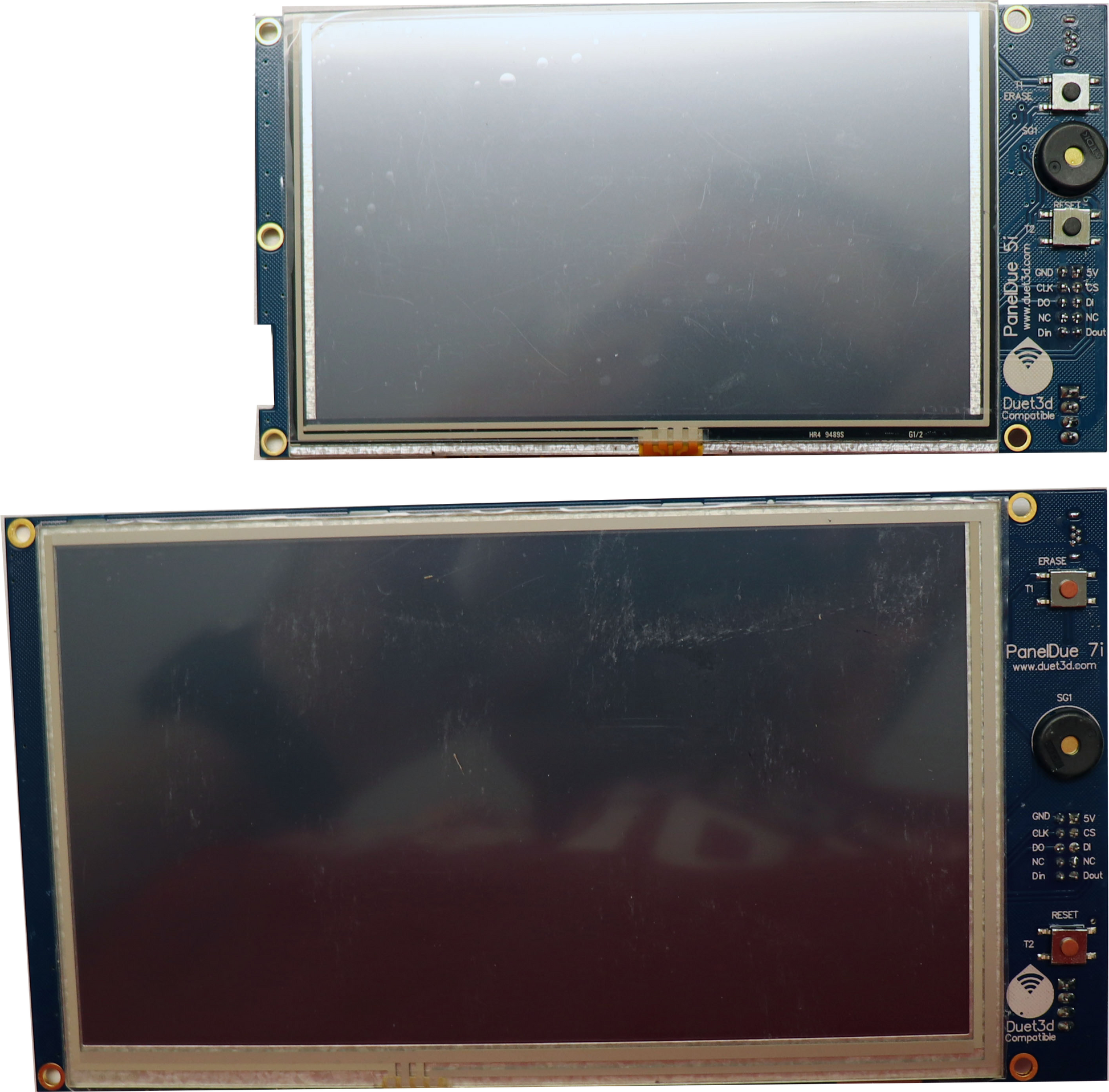

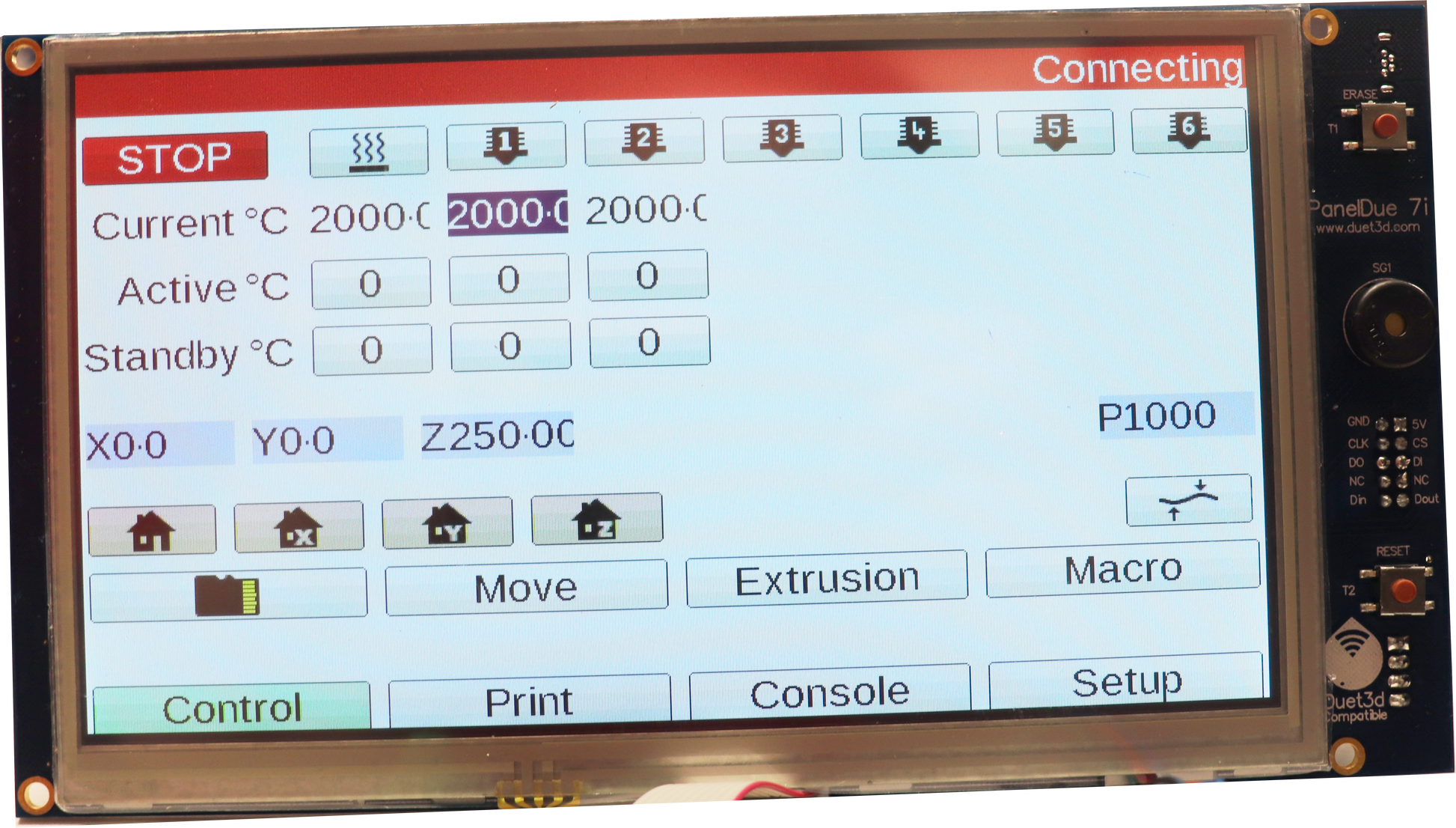

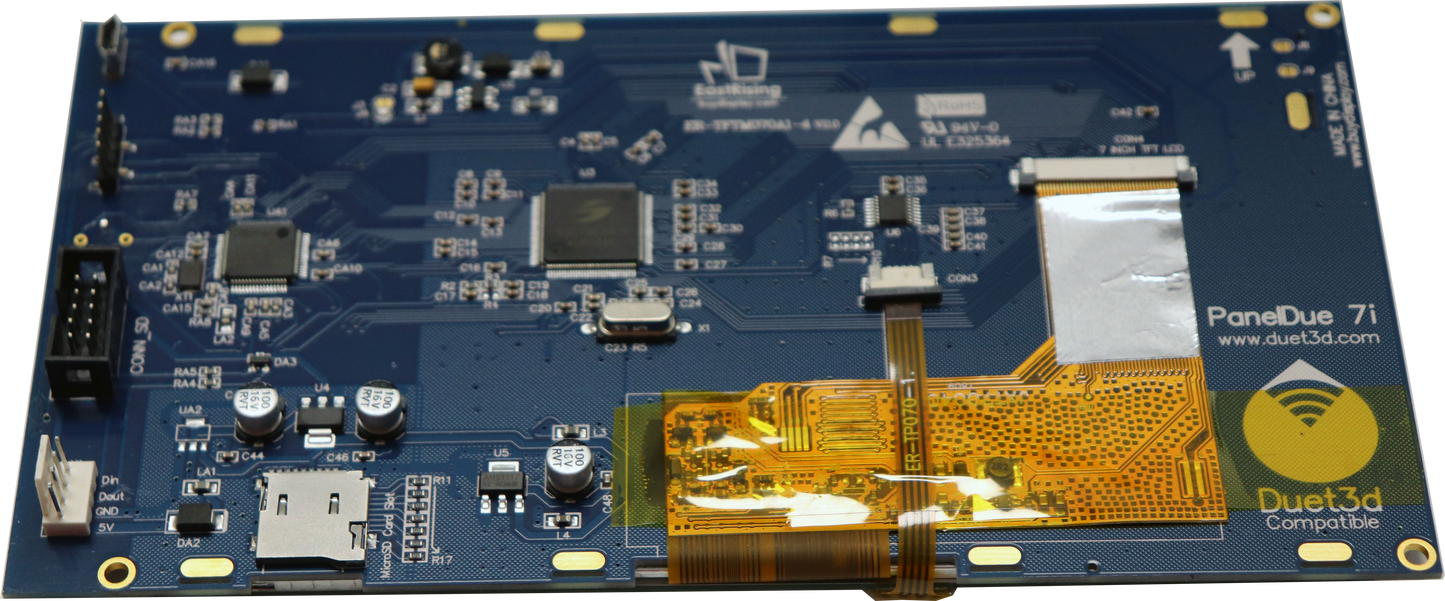

The PanelDue is a color touch screen controller for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD's PCB. Features:-

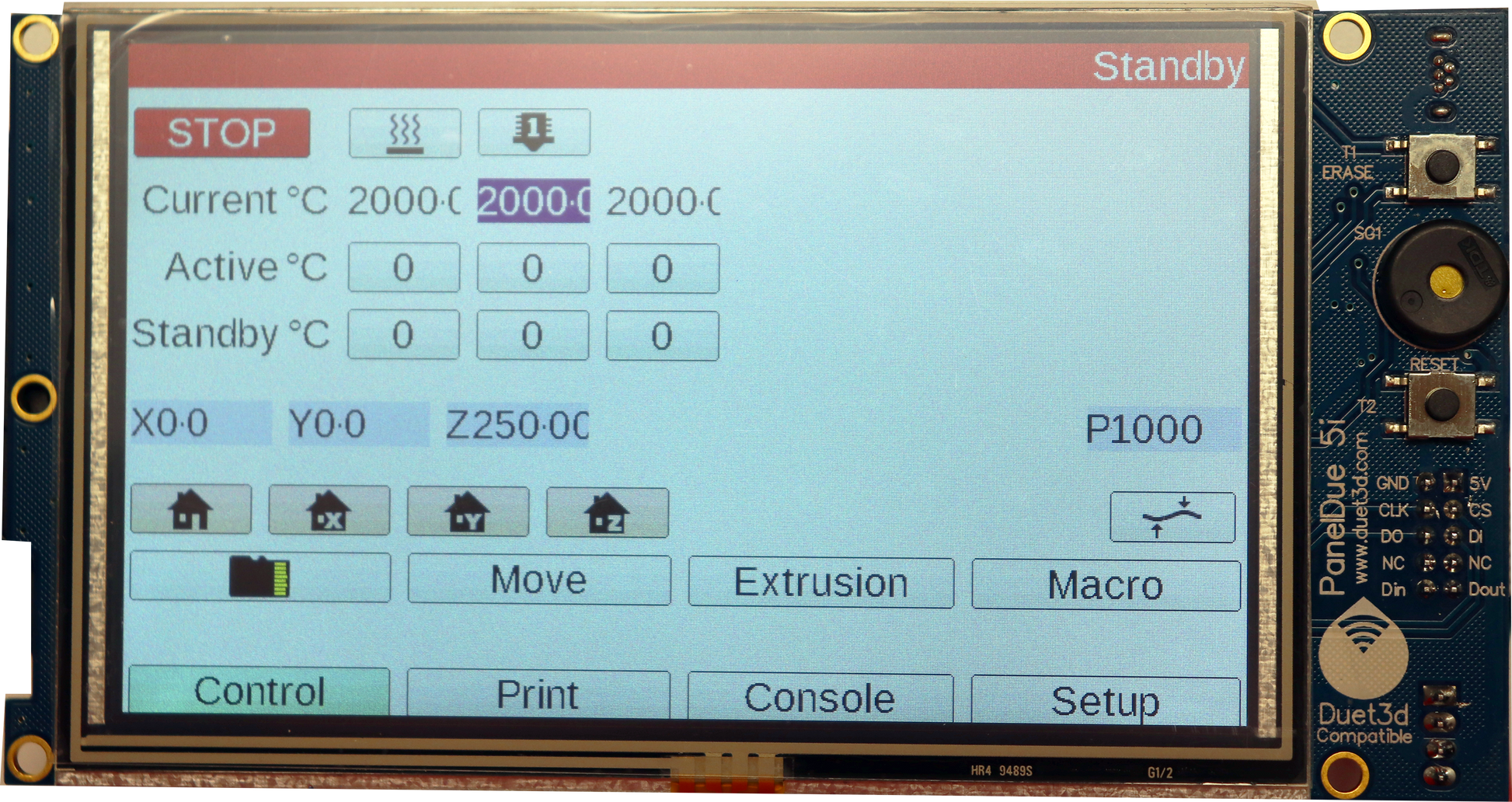

  • Resolution of  800×480 pixels on a 5 inch or 7 inch LCD.
  • 5V power from host 3D printer controller.
  • 2-wire async serial interface with 3.3V signal level (5V tolerant input).

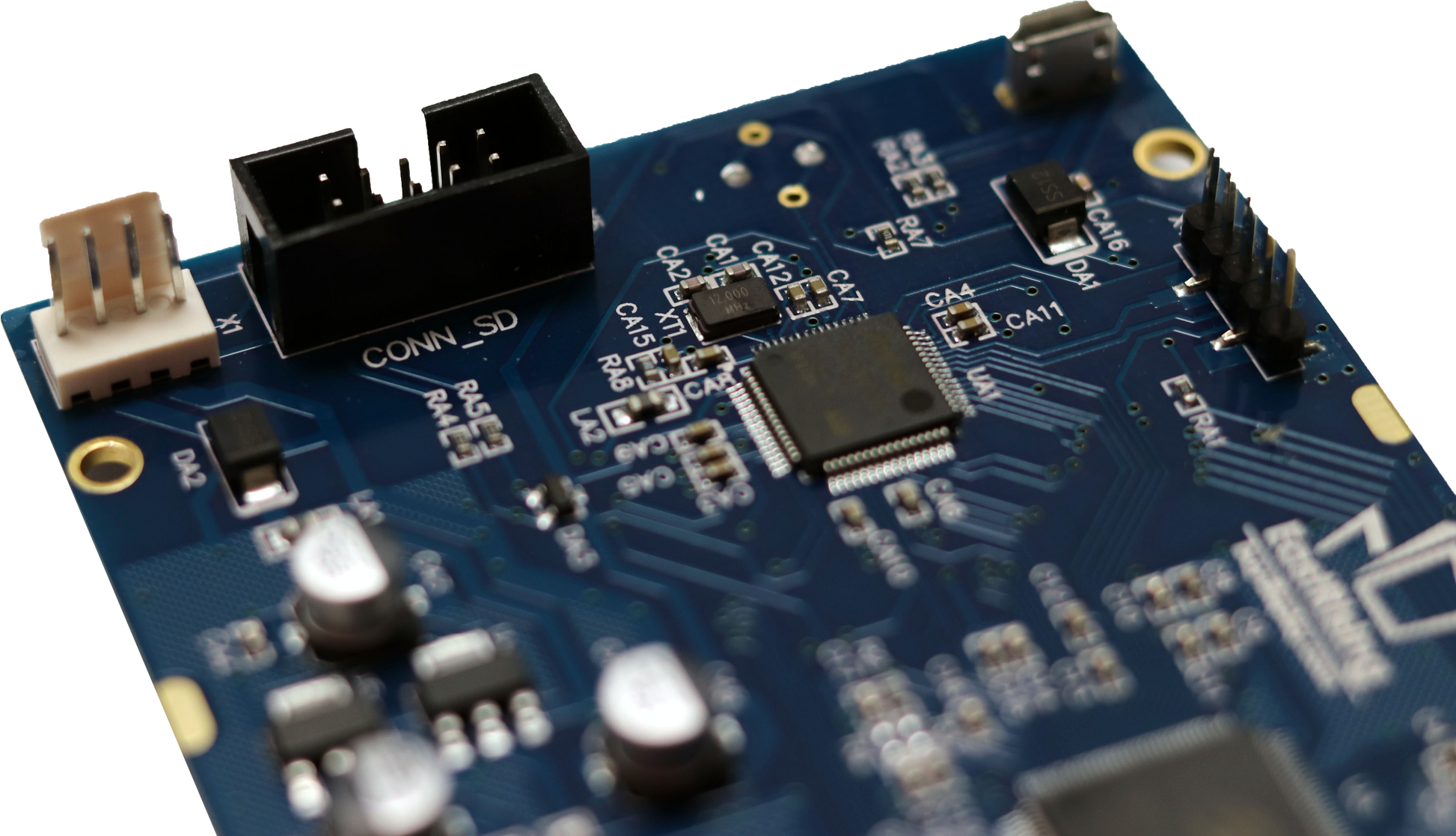

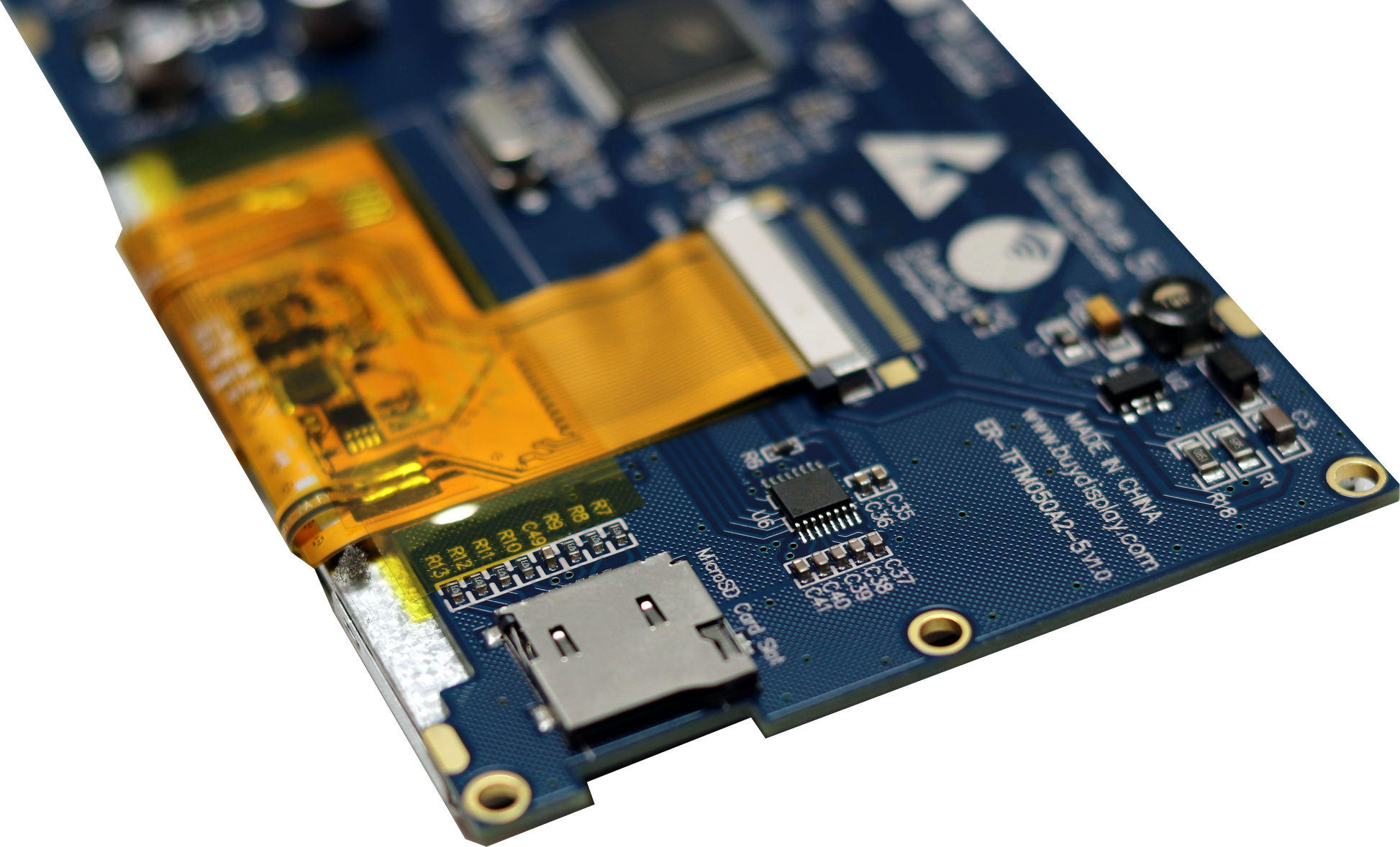

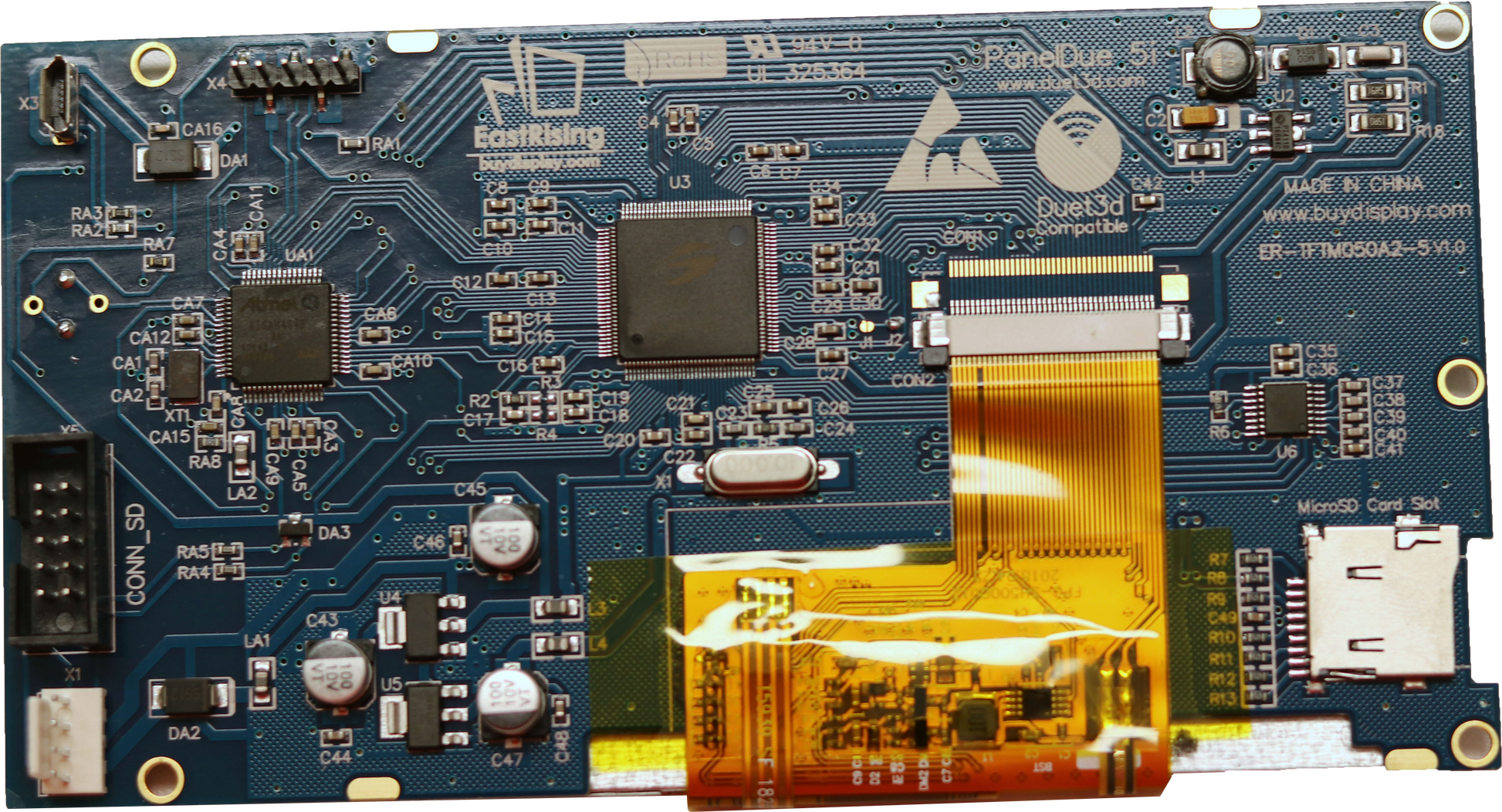

  • Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is supplied.

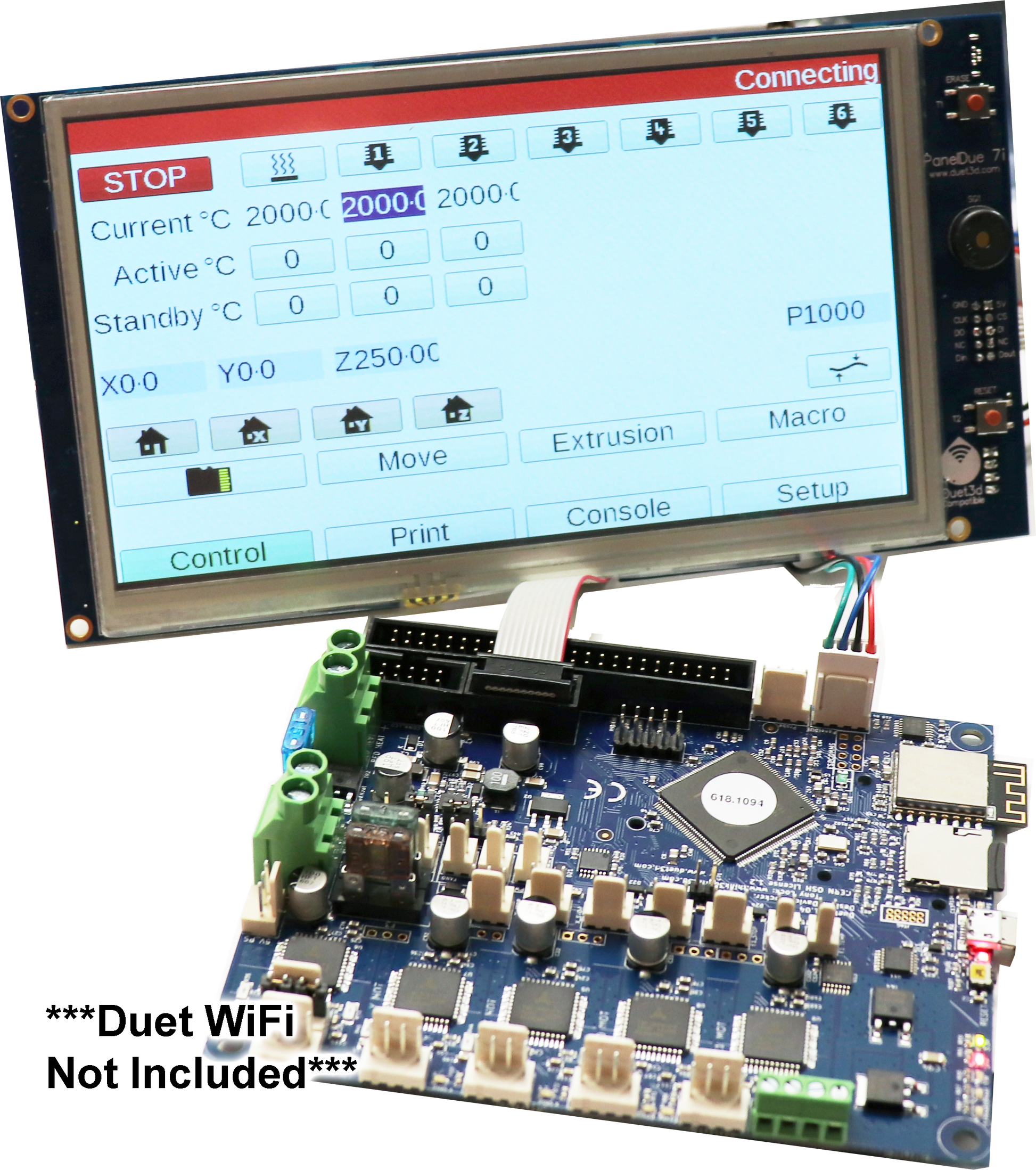

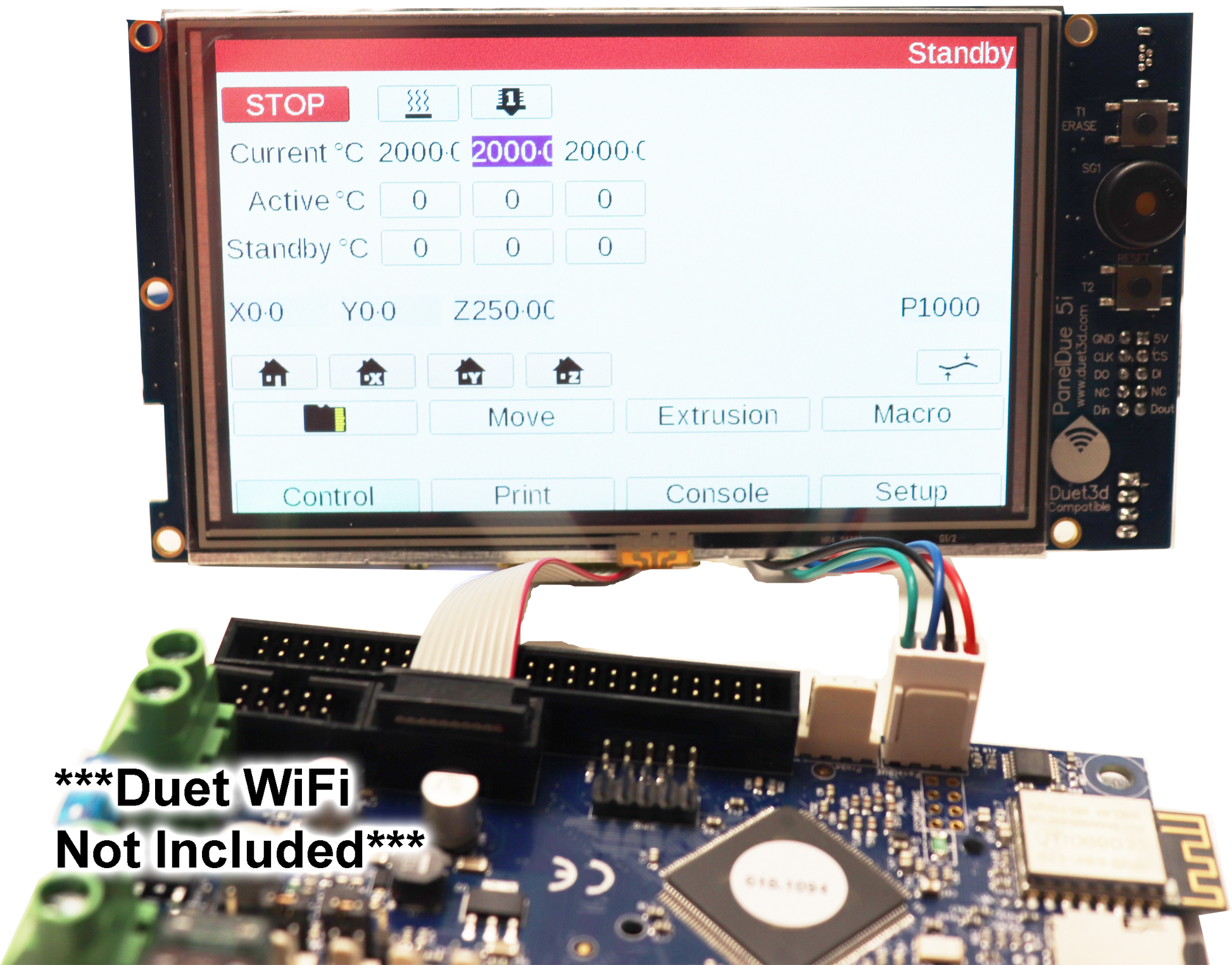

  • 4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied (1m long)

There is an overview of connecting a PanelDue in the documentation.
